Spacious 2,823 sq ft Family Home with Stylish Layout

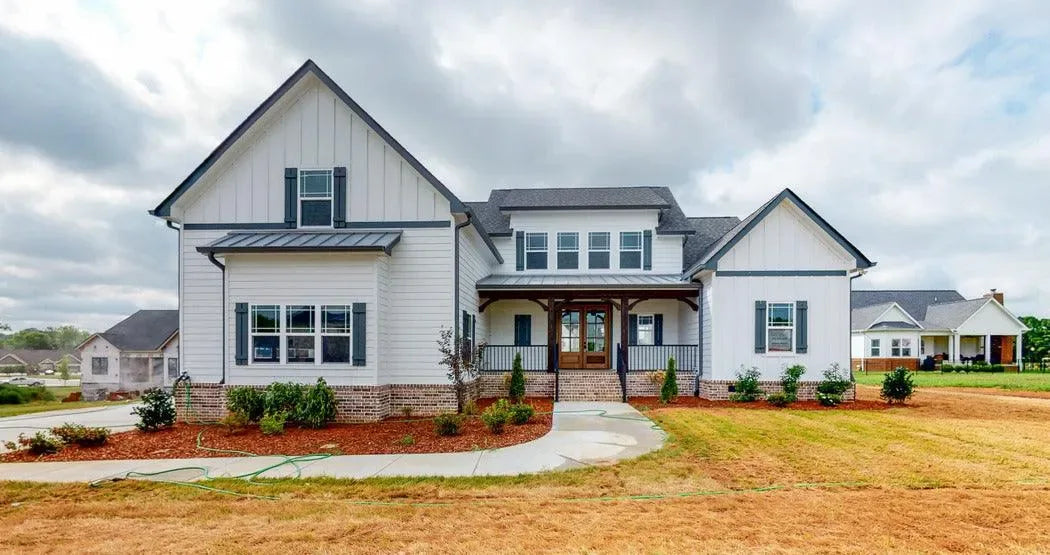

Modern Farmhouse and open concept are harmoniously united in the Chestnut Pointe. Today's highly desirable exterior style with clean lines, mixed materials, and refined details encases a livable, light-filled design that is sure to satisfy. The wide front porch and expansive dormer are the central elements that identify the entry point, welcoming all passers-by. The main level is anchored by a large great room with a beamed ceiling and warming fireplace, complimented by the dining area and chef's kitchen. The master suite also features a beamed ceiling, and boxed bay window, and the accompanying spa bath will meet all the expectations of sophisticated owners. The guest suite on the main floor is situated to provide privacy and could easily convert into a workspace. The covered rear porch and patio add living and dining space to enjoy the outdoors when the weather cooperates. The upper-level houses two additional bedrooms, a compartmented bath along with a multi-purpose bonus room.

House Plan Specifications

  • Total Living (heated area):  2823 sq ft
    1st Floor:  2133 sq ft
    2nd Floor:  690 sq ft
    Bonus Room:  349 (Optional) sq ft
    Basement:  2133 sq ft
  • Garage:  815 sq ft
    Garage Bays:   3
    Garage Load:   Side
  • Bedrooms:   4
    Bathrooms:   3
  • Foundation:   Slab
    Wall Framing:   2x4
    Roof Framing:   Stick
    Roof Pitch:  10:12
  • Width of House:  69'-0''
    Depth of House:  66'-0''
    Building Height:  27'-7''
  • First Floor Ceiling Height:  9'

Key Features

  • Bonus Room
  • First Floor Laundry
  • First Floor Master Suite
  • Guest Suite
  • His & Hers Closets
  • Laundry 1st Floor
  • Laundry Access from Master
  • Mud Room
  • Outdoor Kitchen
  • Split Bedroom
  • Two-Story Foyer
  • Two-Story Grand Room
  • Walk In Closets
  • Walk-in Closet
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: K1609-A
Spacious 2,823 sq ft Family Home with Stylish Layout
4 Bedrooms
3 Full Baths
2823 SQ FT

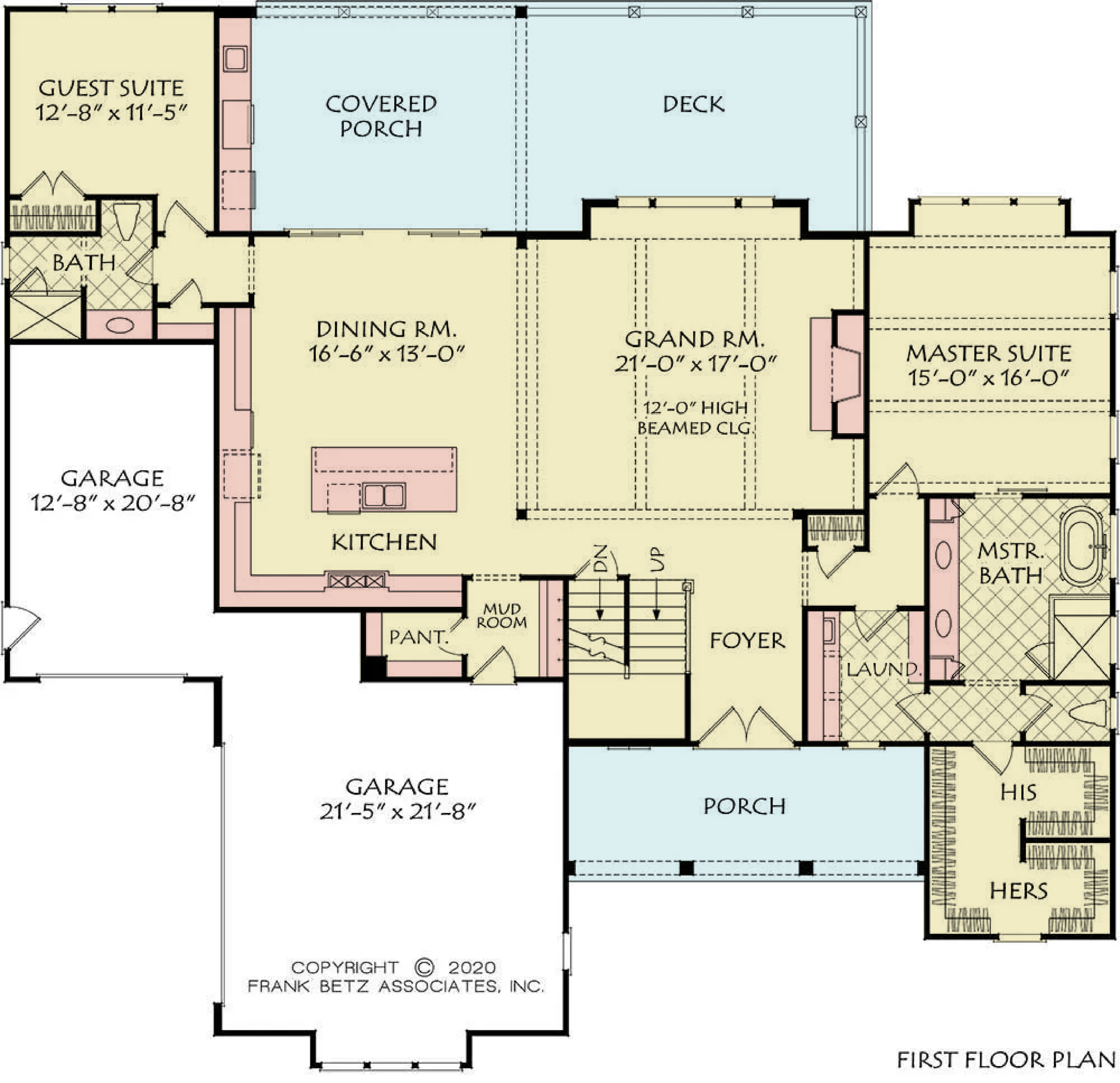

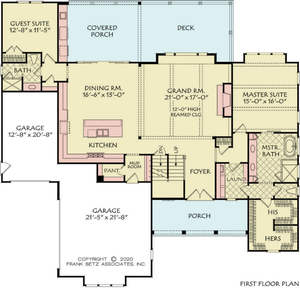

Main Level

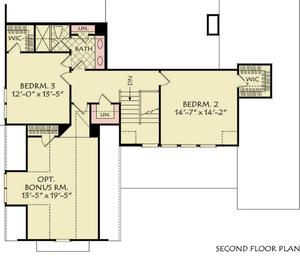

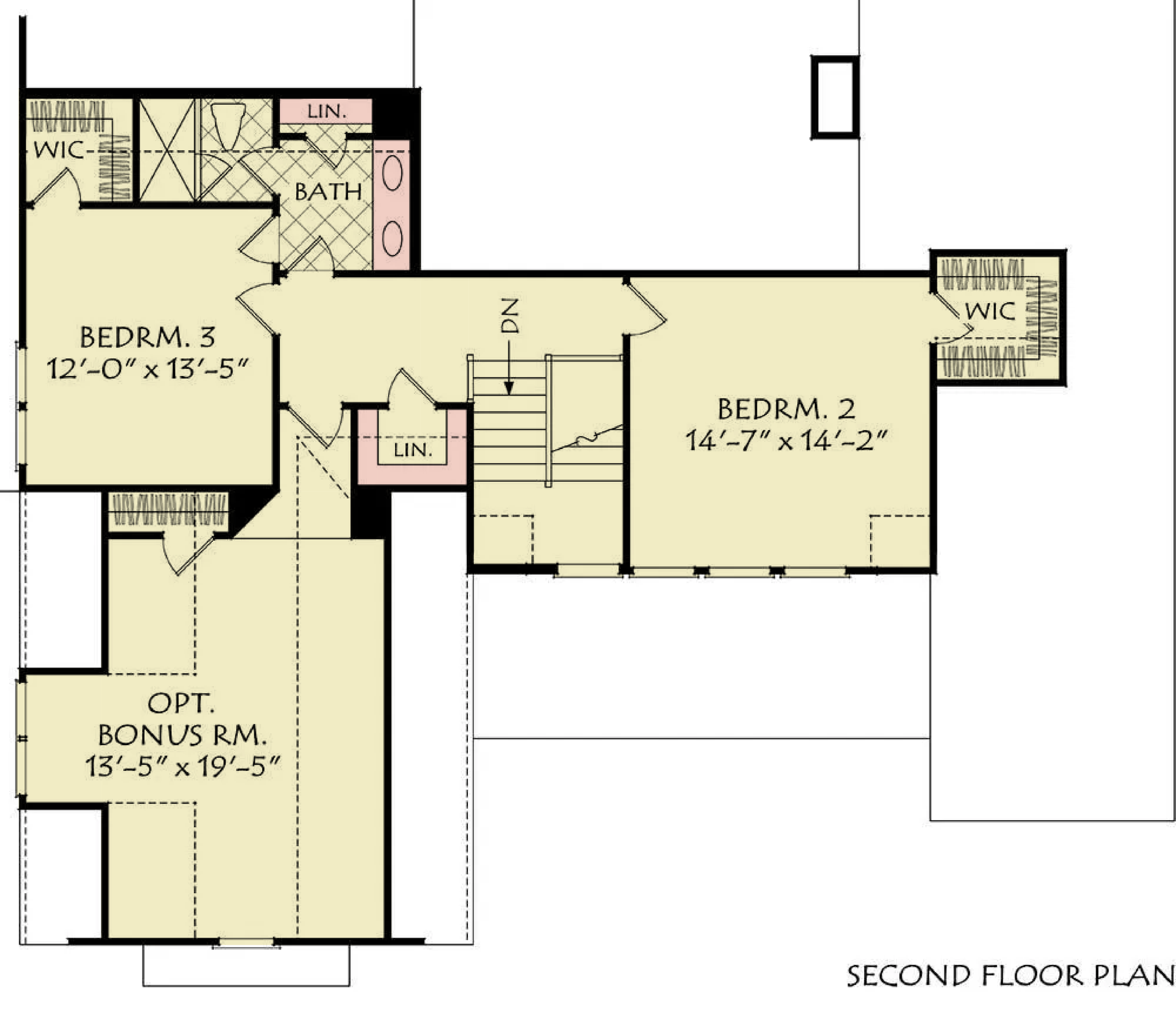

Second Floor
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
