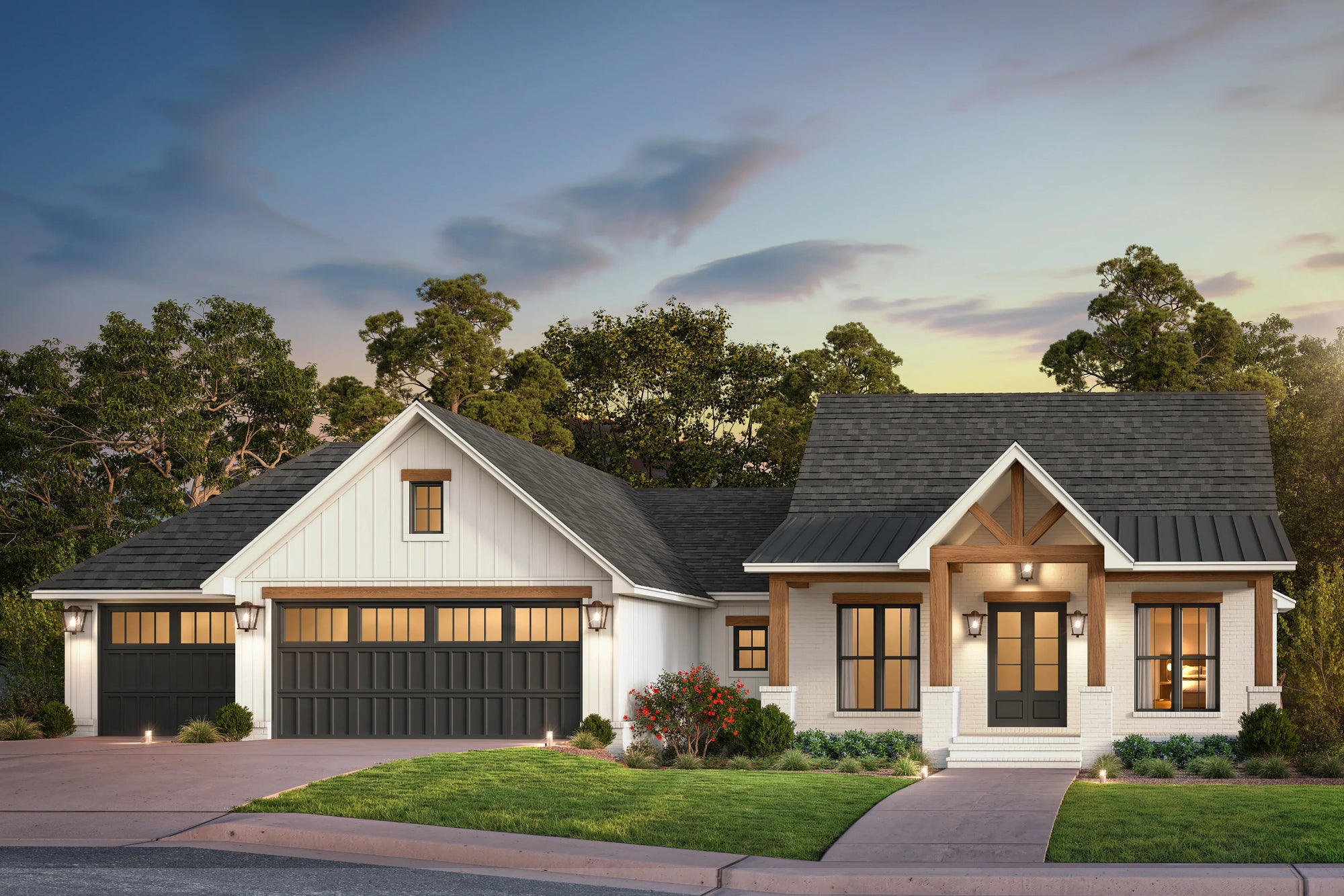

1698 2 Hartley Ii is a single-story residence spanning 1,698 square feet of heated living space. Designed with a 74-foot, 6-inch width and 49-foot, 10-inch depth, this plan utilizes a 3-car garage configuration with an integrated workshop area totaling 782 square feet. The exterior is defined by a 387 square foot combined porch area, featuring a 263 square foot front porch and a 124 square foot rear porch.

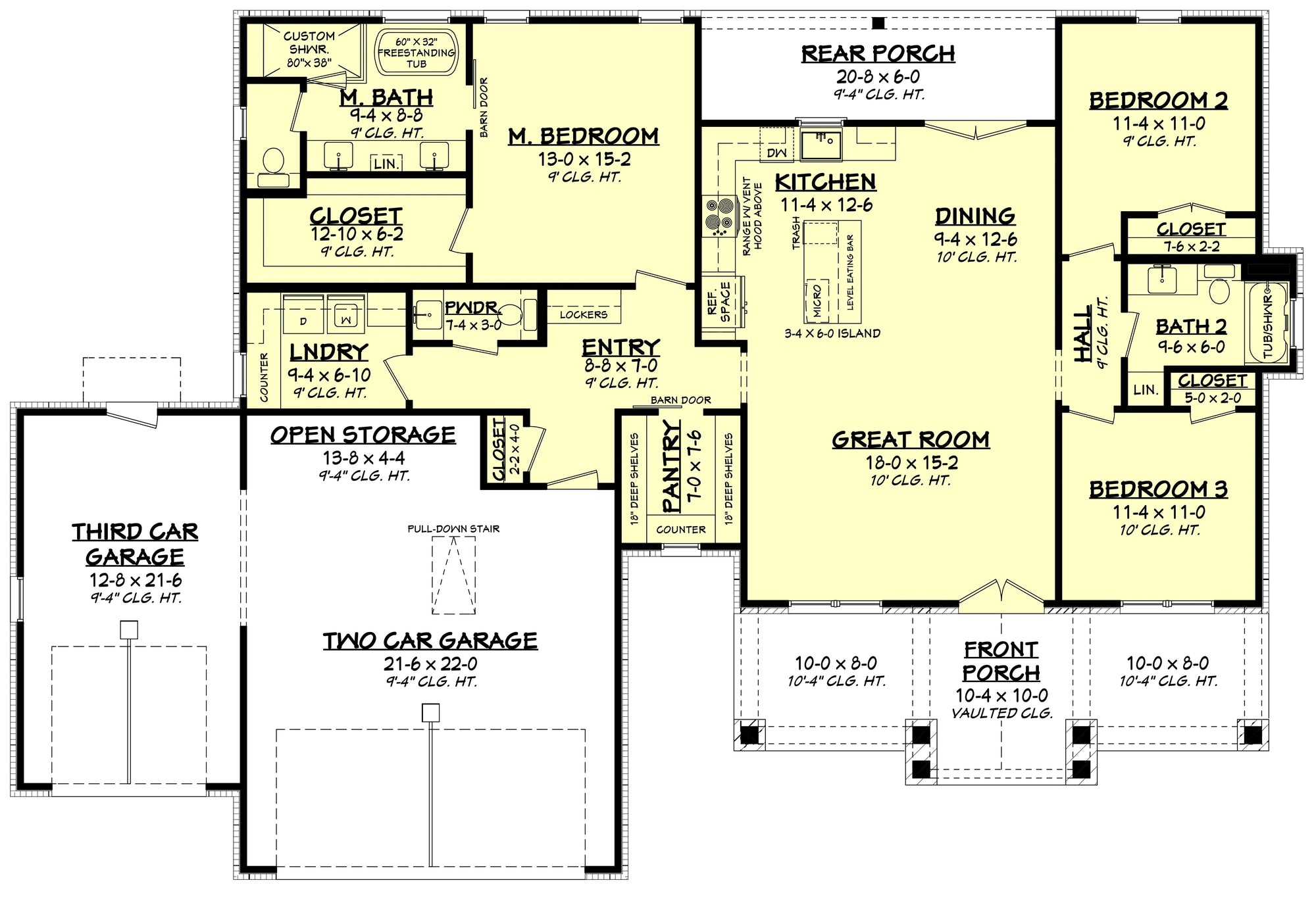

The interior floor plan centers on an open-concept great room that connects directly to the kitchen and formal dining area. This central zone is supported by a large walk-in pantry and an eat-at kitchen island. A dedicated mudroom serves as a transition space, while the laundry room is positioned on the main floor for immediate access. The layout incorporates 3 bedrooms and 2 full bathrooms, alongside one half bathroom for guest use.
The primary suite occupies a private corner of the home, featuring an oversized walk-in closet and a bathroom equipped with a separate tub and shower. The 9-foot ceiling heights throughout the main level contribute to a consistent vertical scale, while the 25-foot maximum building height allows for a significant roofline profile. The structure is designed to accommodate various roof pitches, ranging from 3.5:12 to 12:12, providing adaptability for different regional aesthetic requirements.
Construction efficiency is prioritized through a total footprint that includes 61 square feet of dedicated storage space. The 3-car garage orientation provides substantial vehicle capacity and workspace without compromising the home's primary living envelope. This architectural design focuses on maximizing the 1,698 square feet of living area through a logical room arrangement that separates the primary wing from secondary bedrooms.
Key Features: 3 bedrooms, 2.5 bathrooms, 1,698 sq ft main level, 3-car garage with workshop, walk-in pantry, kitchen island, mudroom, 9-foot ceilings, covered front and rear porches, primary suite with separate tub and shower.
