Spanning a total of 7,236 sq ft, the Castlewood quadplex townhouse provides four identical 3-level units, each configured with 1,809 sq ft of heated living space. This multi-family design occupies a footprint 68 ft wide by 44 ft deep, catering to investors or multi-generational households seeking a dense, vertical housing solution. The exterior profile reaches a maximum building height of 31 ft 9 in, defined by a 3:12 roof pitch that supports a contemporary aesthetic.

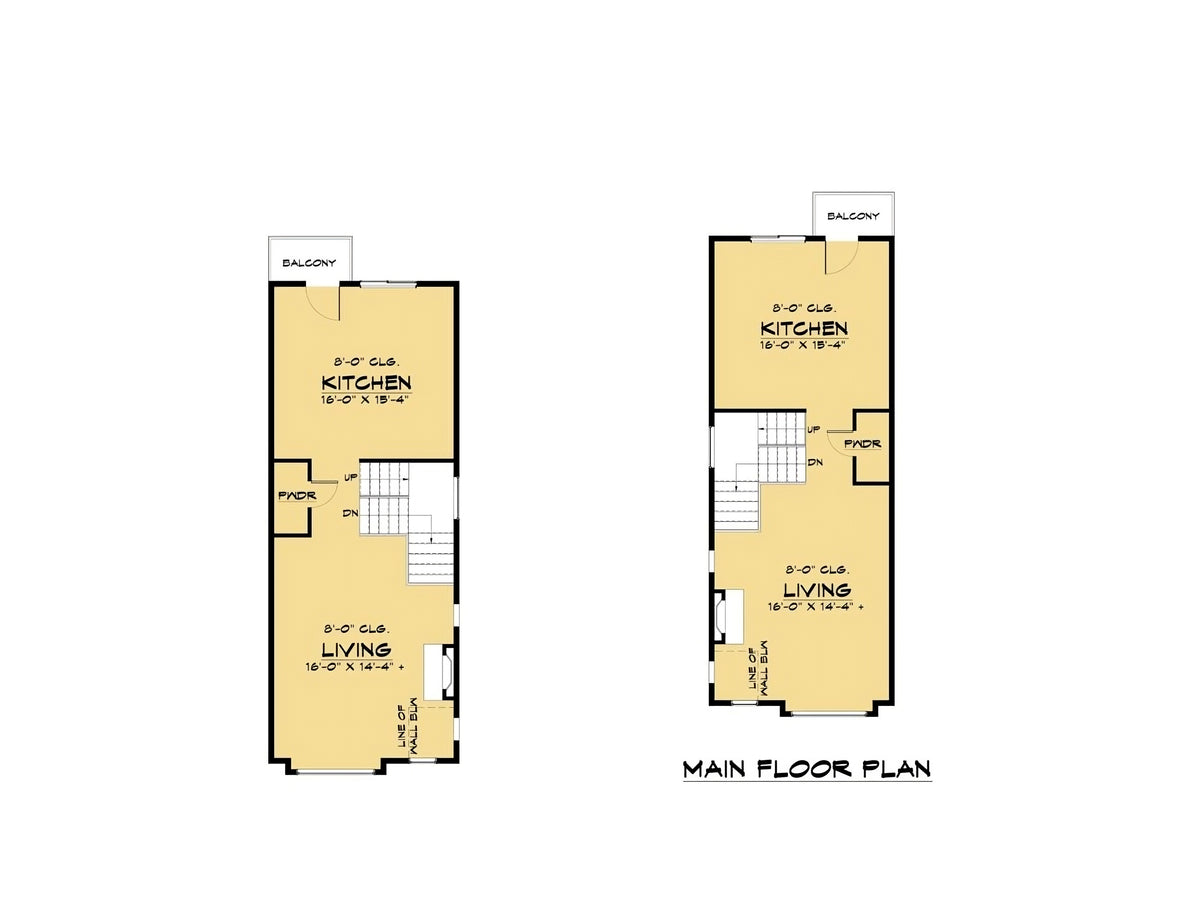

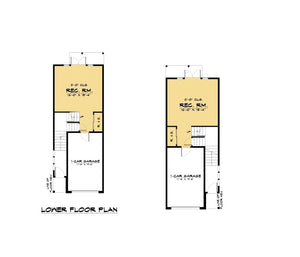

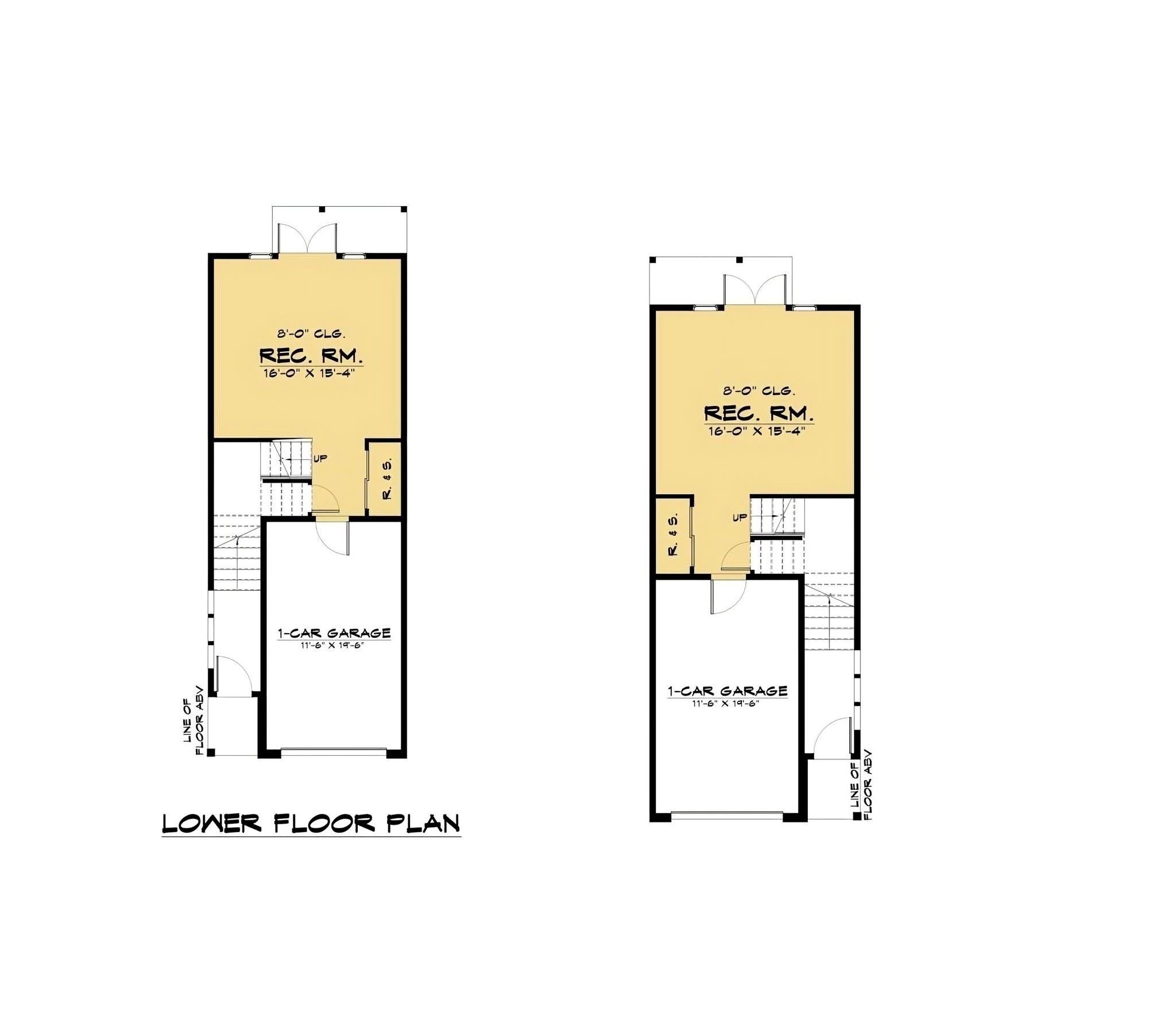

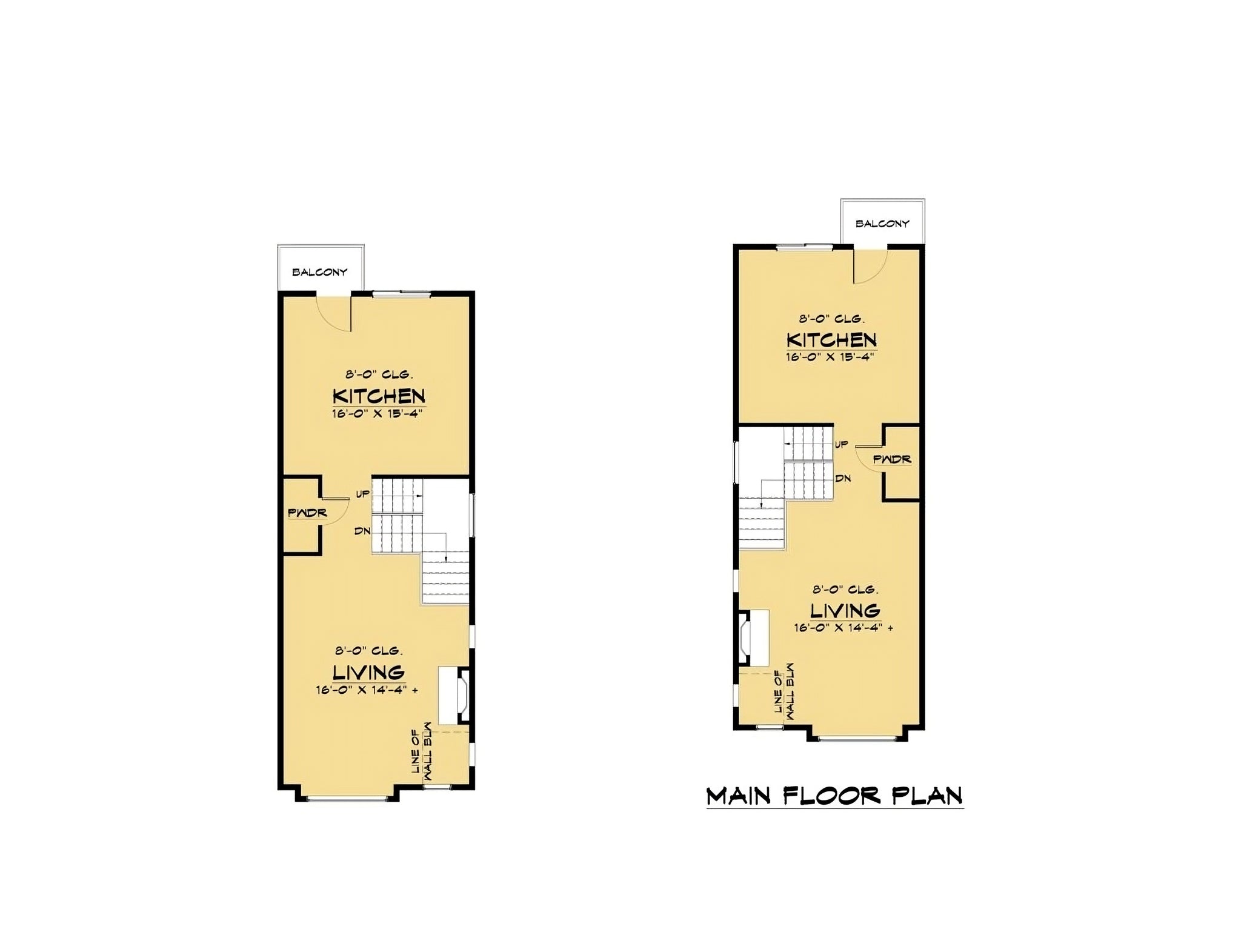

Each unit features a stratified floor plan, beginning with a ground level of 466 sq ft that provides entry access and utility space. The central living core resides on the main level, encompassing 664 sq ft dedicated to an open-concept kitchen, dining, and living area. This arrangement maintains clear sightlines between the food preparation zone and the common social space, grounded by 8-foot ceiling heights throughout the primary living levels.

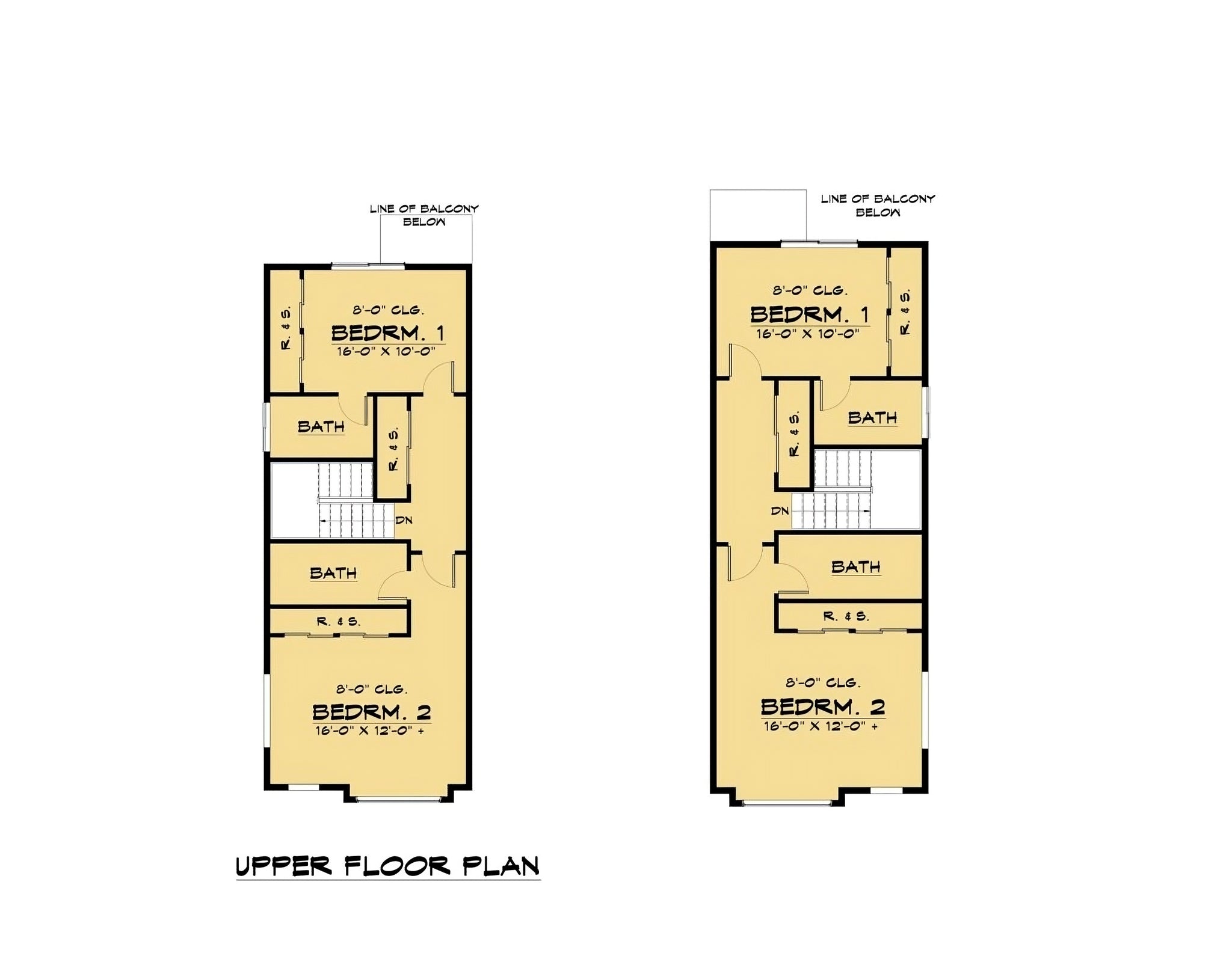

The upper level of each unit contains 679 sq ft of private quarters, housing the bedroom suites and associated bathrooms. With a total of 8 full bathrooms and 4 half bathrooms distributed across the four units, the layout ensures consistent access to sanitary facilities for all residents. The design also incorporates 240 sq ft of porch area and 184 sq ft of deck space, extending the usable footprint into the exterior environment.
Construction specifications include 2x6 wall framing and truss roof framing, ensuring structural integrity for the three-story configuration. The total garage area of 972 sq ft accommodates 4 cars, allowing for a 1-car garage allocation per unit. This integrated parking strategy minimizes lot coverage while providing secure, direct-access storage for each household.
Key Features: 8 full bathrooms, 4 half bathrooms, 4 kitchens, 3-level quadplex configuration, 1-car garage per unit, 3:12 roof pitch, 2x6 wall construction, truss roof framing, open-concept living, private balcony and patio access.
Review plan layouts, CAD packages, and customization options for this home.
