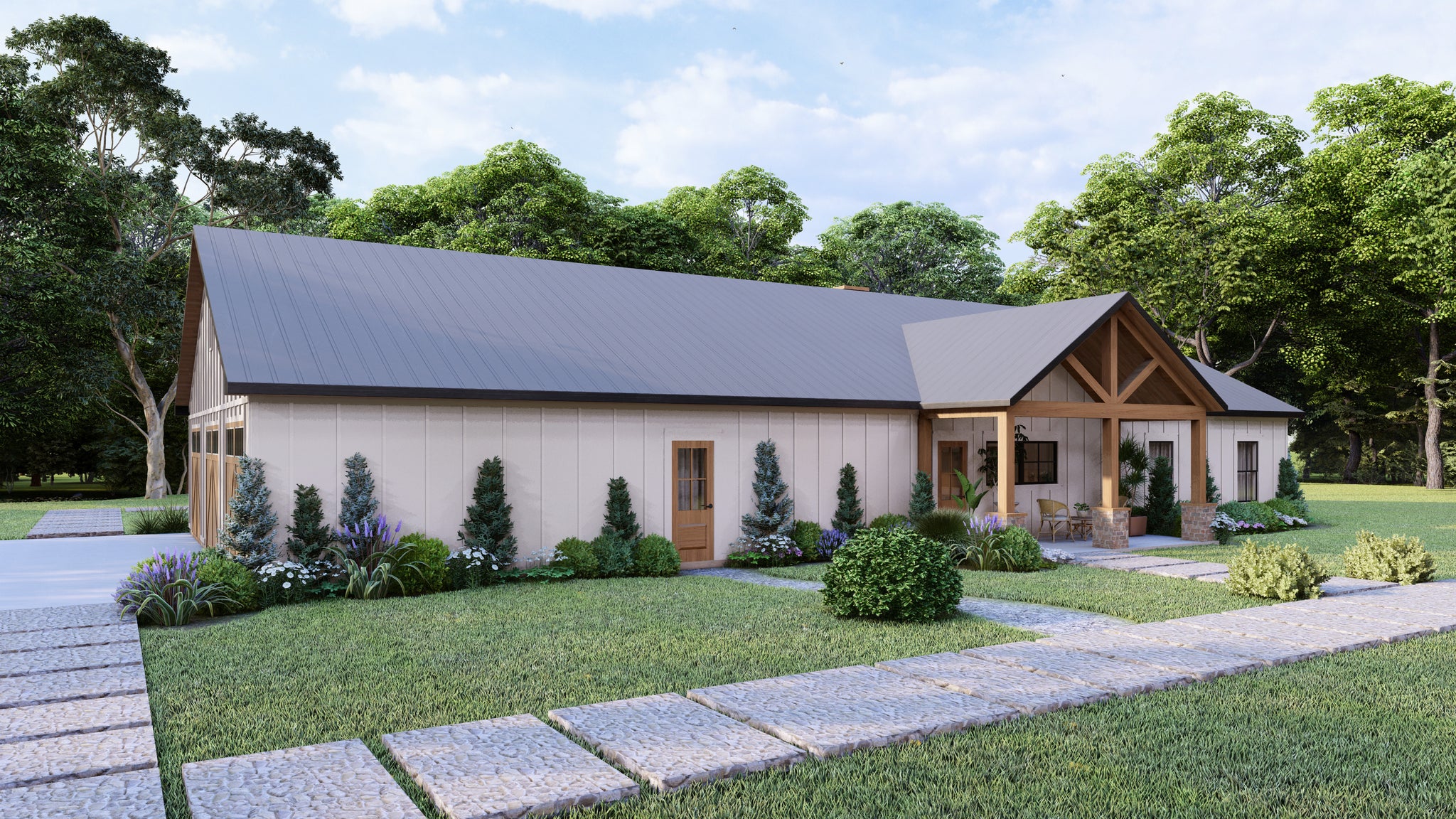

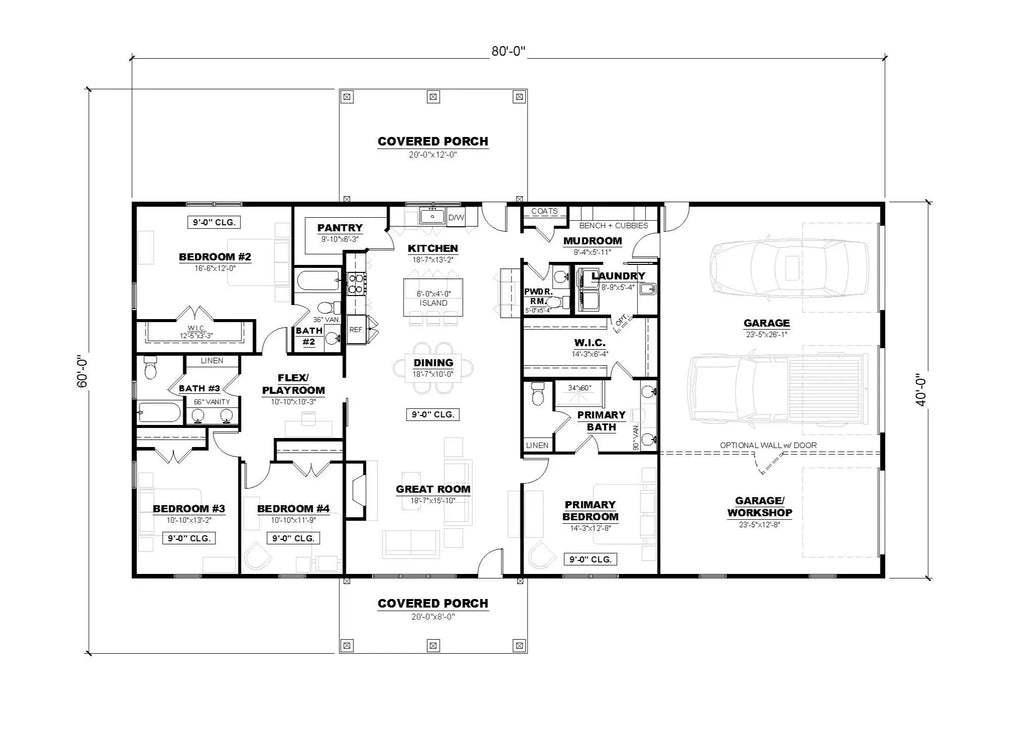

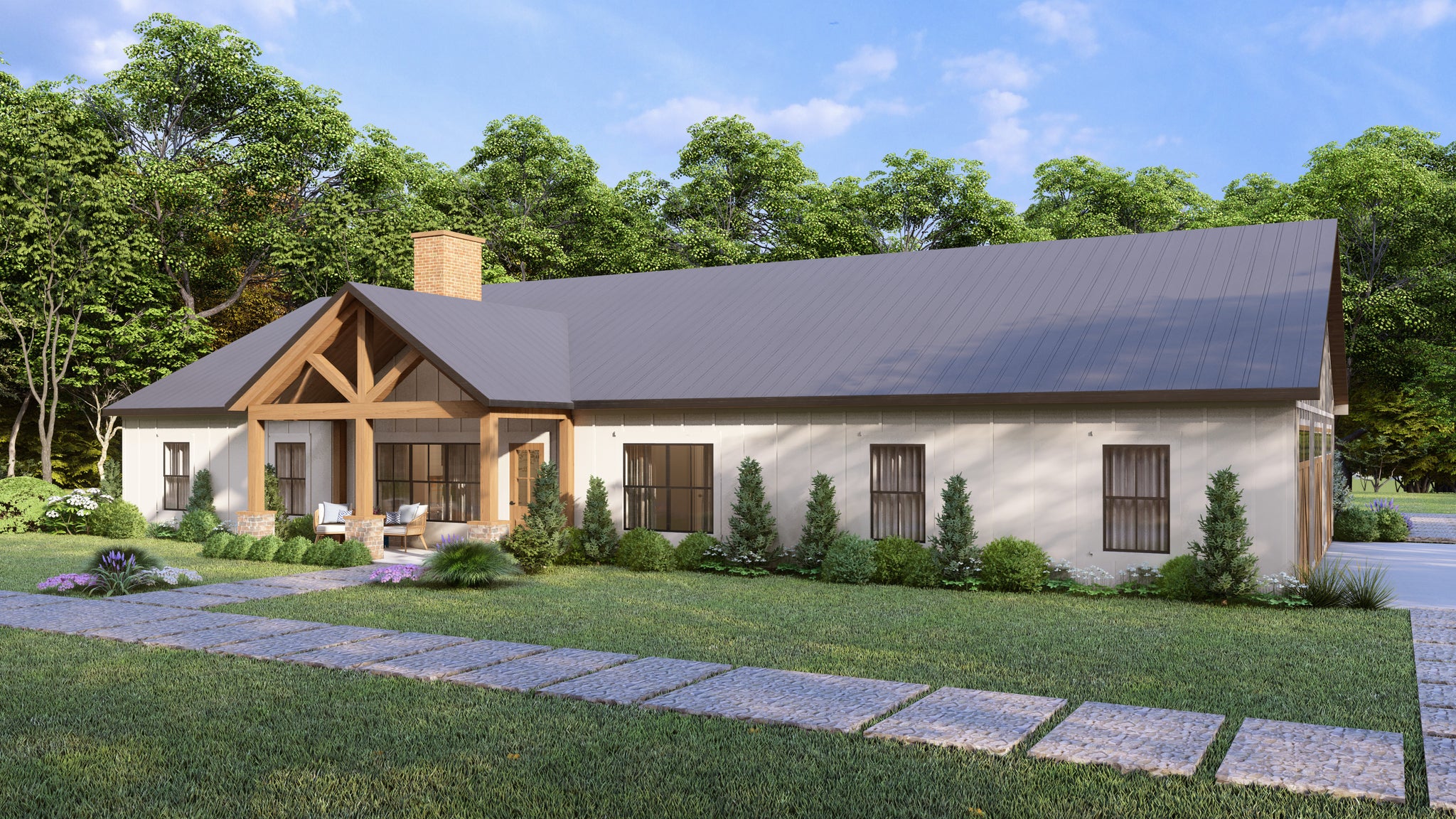

Cassidy 4 is a single-story ranch house plan providing 2,240 square feet of heated living area. Designed for an 80-foot wide by 60-foot deep footprint, this residence utilizes a split-bedroom layout to separate the primary suite from three secondary bedrooms, establishing clear zones for privacy and rest.

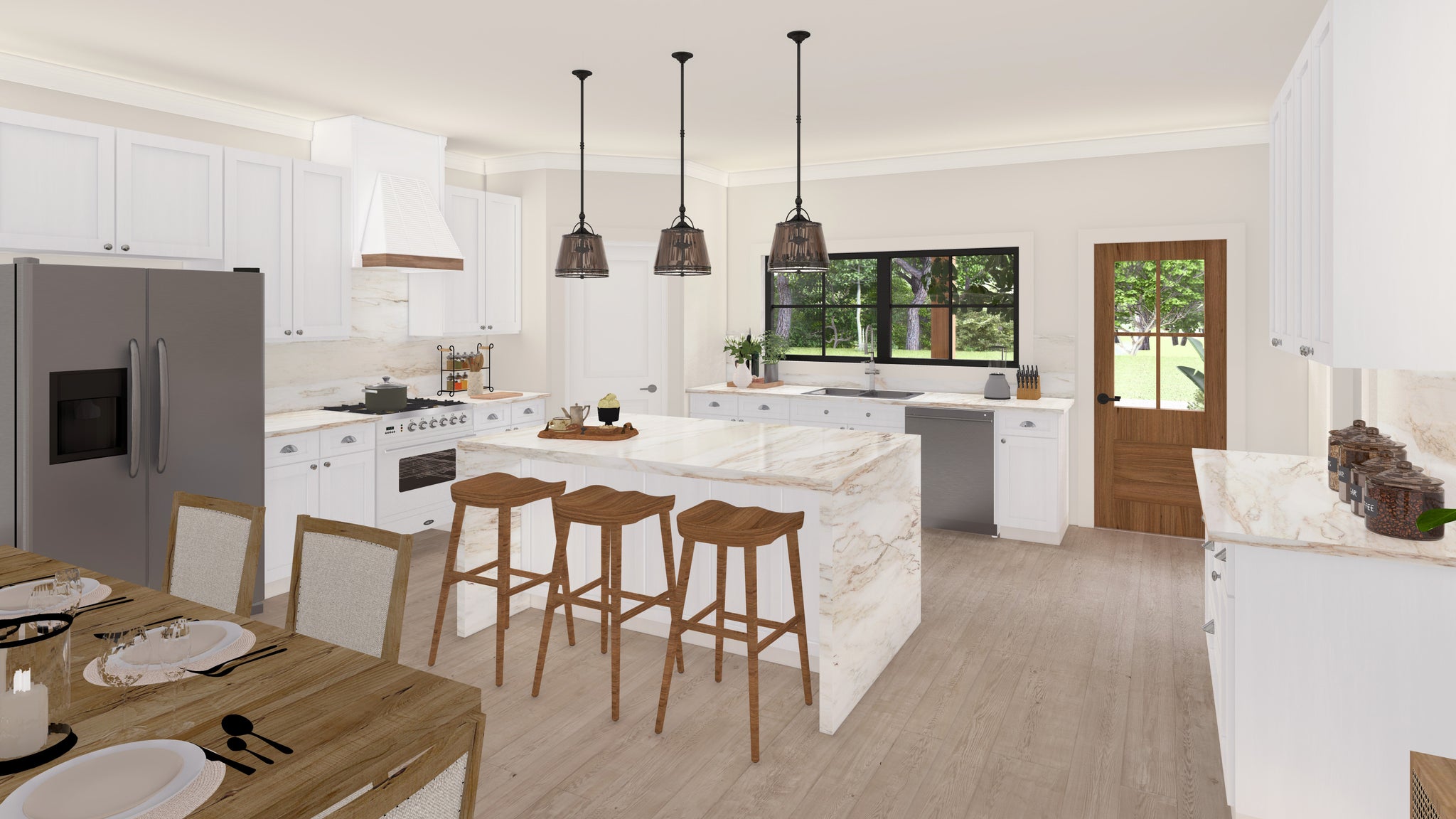

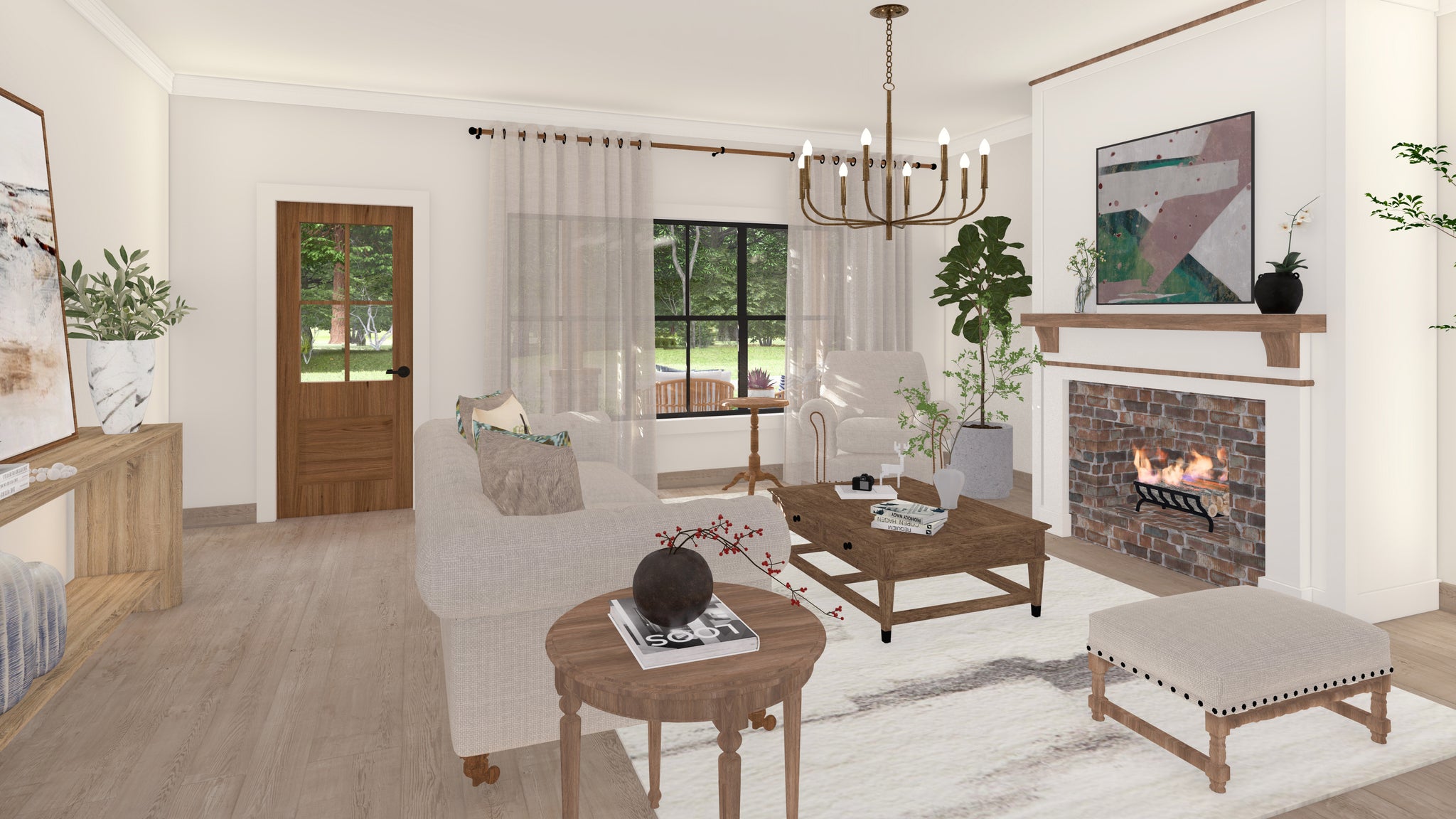

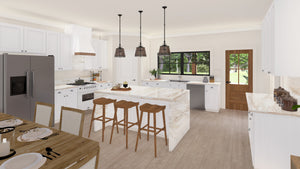

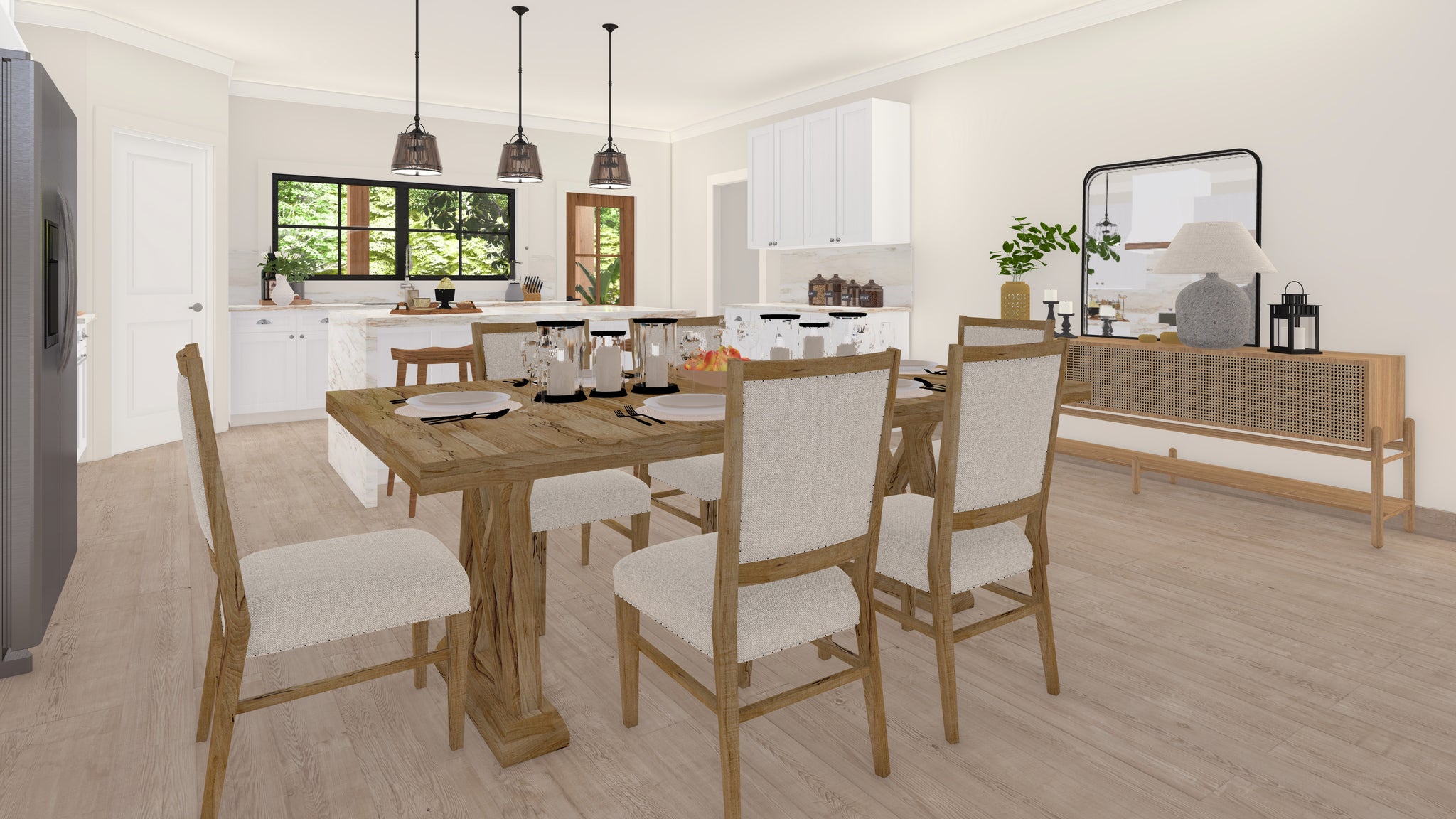

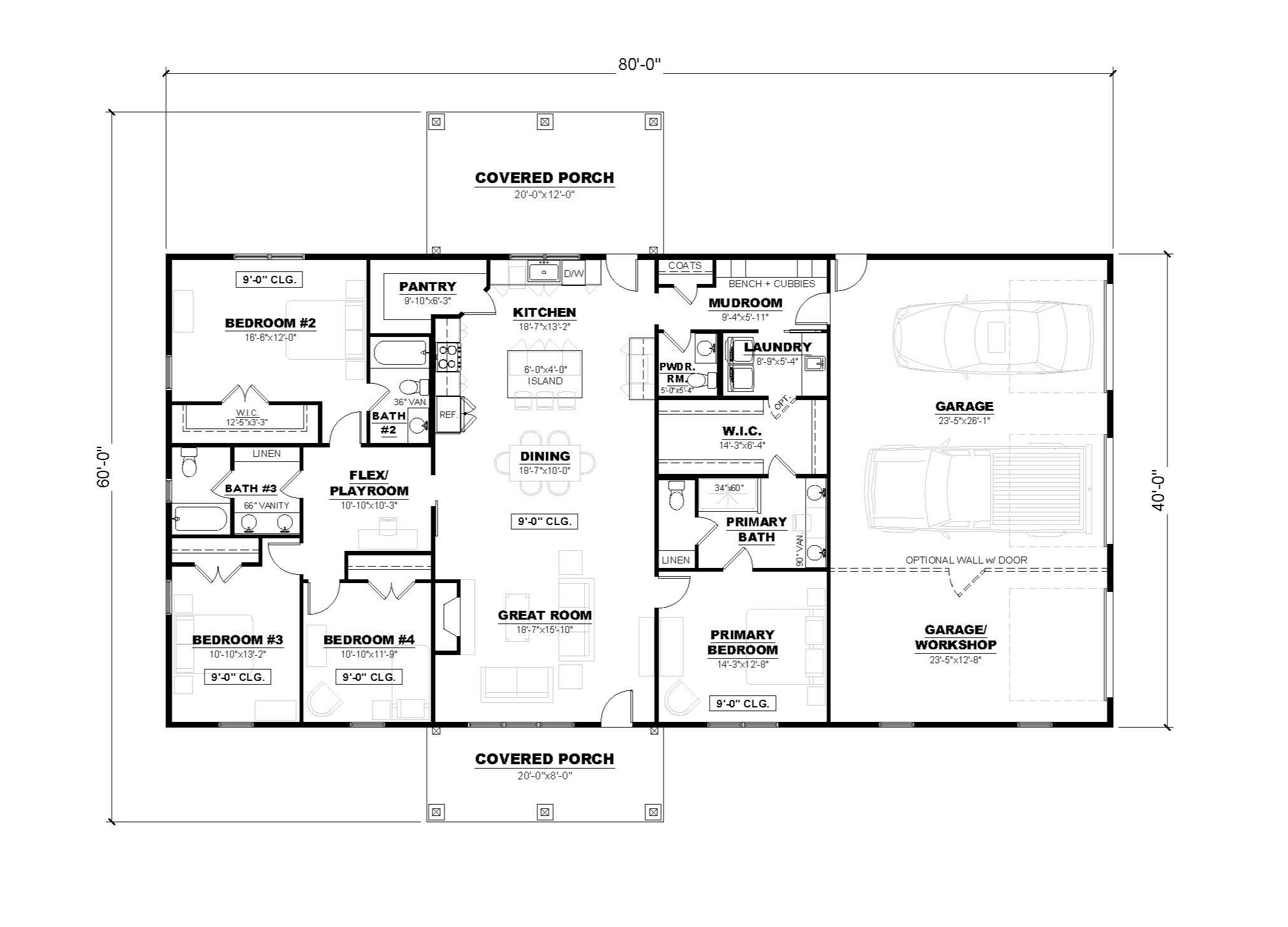

The main level centers on an open-concept living core that integrates the family room and kitchen, the latter featuring a dedicated walk-in pantry. A flexible room provides additional square footage for a home office or media zone, while the laundry room is positioned for direct access from the primary suite closet. This configuration supports efficient movement between utility and private areas within the 2,240 square foot floor plate.
Construction specifications include 9-foot ceiling heights throughout the interior to enhance the sense of volume. The structure is built on a slab foundation with 2x4 framing and features a roof pitch combination of 6:12 and 8:12, resulting in a maximum building height of 19 feet 9 inches. These technical choices ensure structural consistency while maintaining a classic ranch profile.

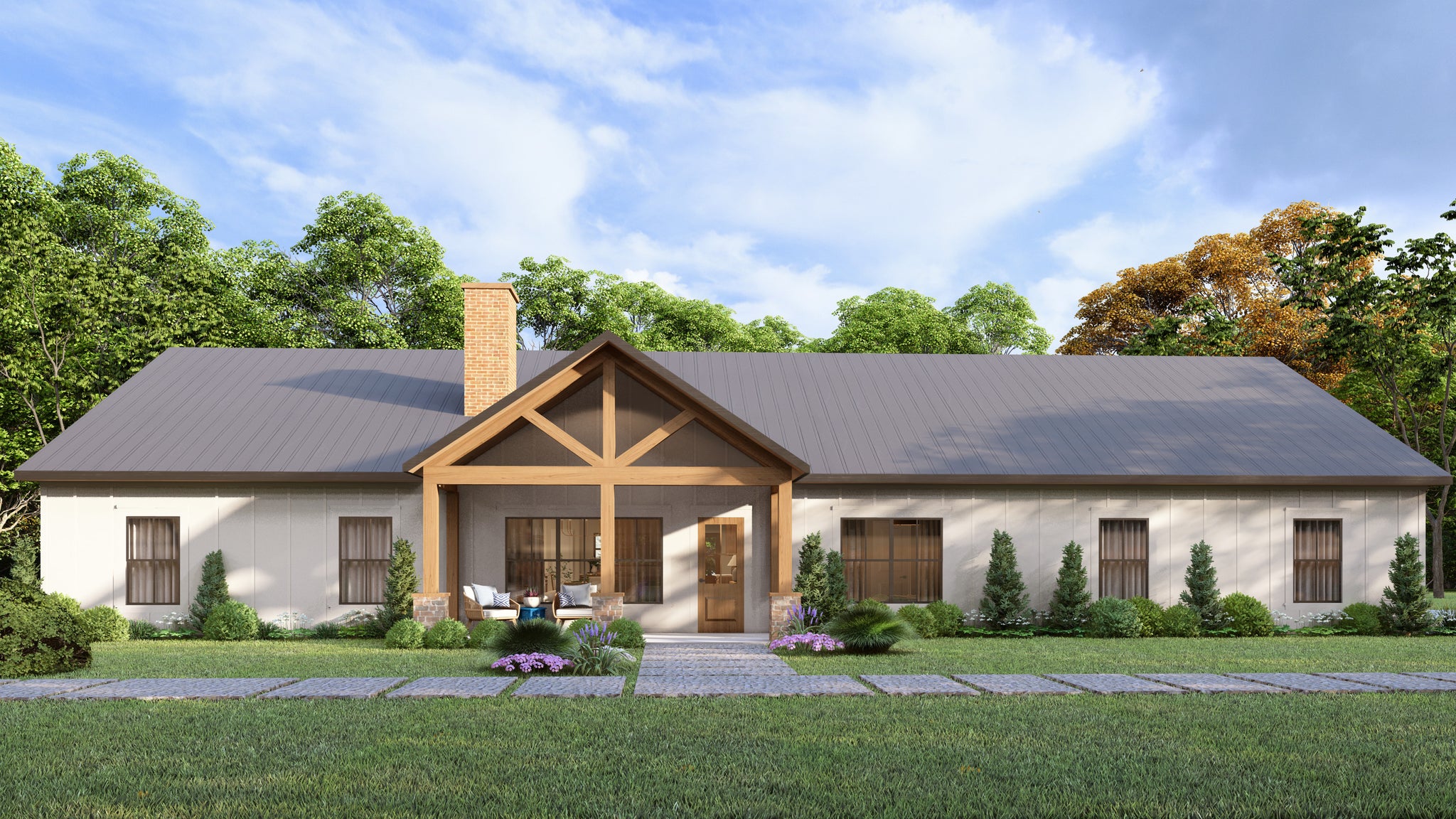

Outdoor living is extended through a 160 square foot covered front porch and a 240 square foot rear porch, allowing for transitions between interior and exterior zones. The garage configuration includes a 640 square foot 3-car side-load garage, which incorporates an additional 320 square foot dedicated workshop. This integrated workspace provides a specialized environment for hobbies, equipment storage, or vehicle maintenance without occupying the primary residential square footage.
Key Features: 4 bedrooms, 3 full bathrooms, 1 half bathroom, 2,240 sq ft, split-bedroom layout, first-floor primary suite, walk-in pantry, 3-car side-load garage, 320 sq ft workshop, 9-foot ceilings, slab foundation, covered front and rear porches.
Review plan layouts, CAD packages, and customization options for this home.
