Plan Number:
D528-A
Plan Number:
D528-A
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
Archival Designs brings you over 40 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.
We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area. It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.
Important Note:
House plans do not come stamped or signed by an architect or engineer. Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.

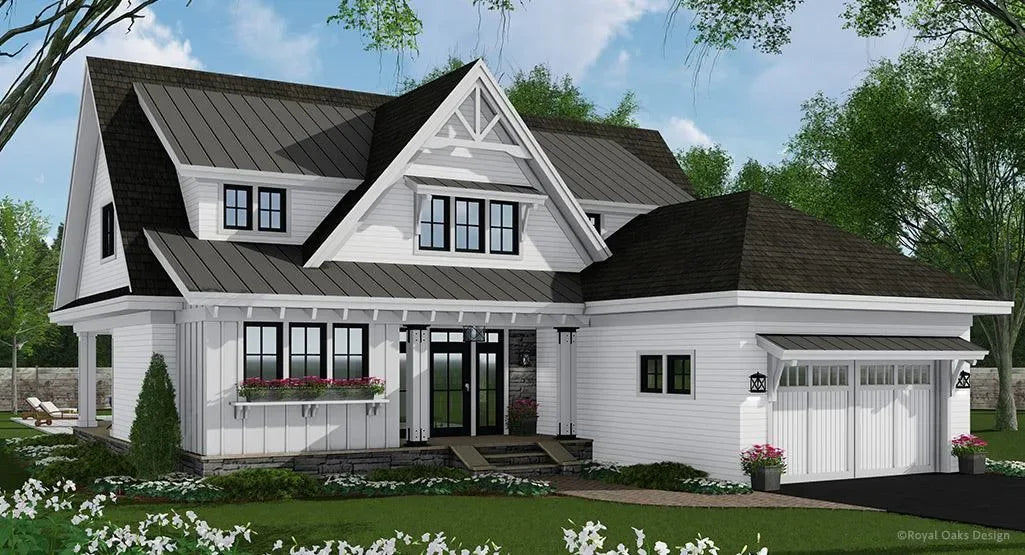

The clean lines and aesthetically pleasing details of this two-story 2652 sq ft Modern Farmhouse will make you stop and say wow! The open spacious layout offers 3-4 bedrooms, 3 full baths and a 2-car garage.

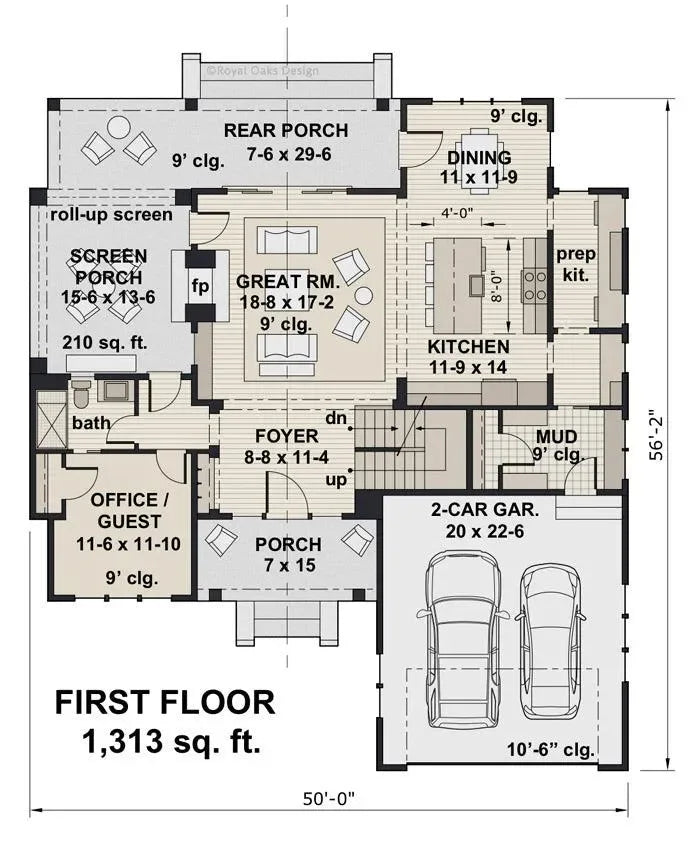

The eat-in kitchen is a cook’s dream! This craftsman inspired house plan features a huge prep kitchen and pantry with dual beverage coolers. The generous center island has a built-in sink and dishwasher plus seating for 4. The abundant cabinets will meet all your storage needs. The dining area has windows on two sides and access to the covered rear porch, an excellent space for family meals or just table talk.
Off the kitchen is the expansive great room with sliding glass doors, offering lots of natural light and a view to the rear porch. A 2-sided fireplace is shared between the great room and screen porch.
The lower level also holds a corner office or guest room as well as a mud room off the garage with a big closet and built-in cabinets and bench.

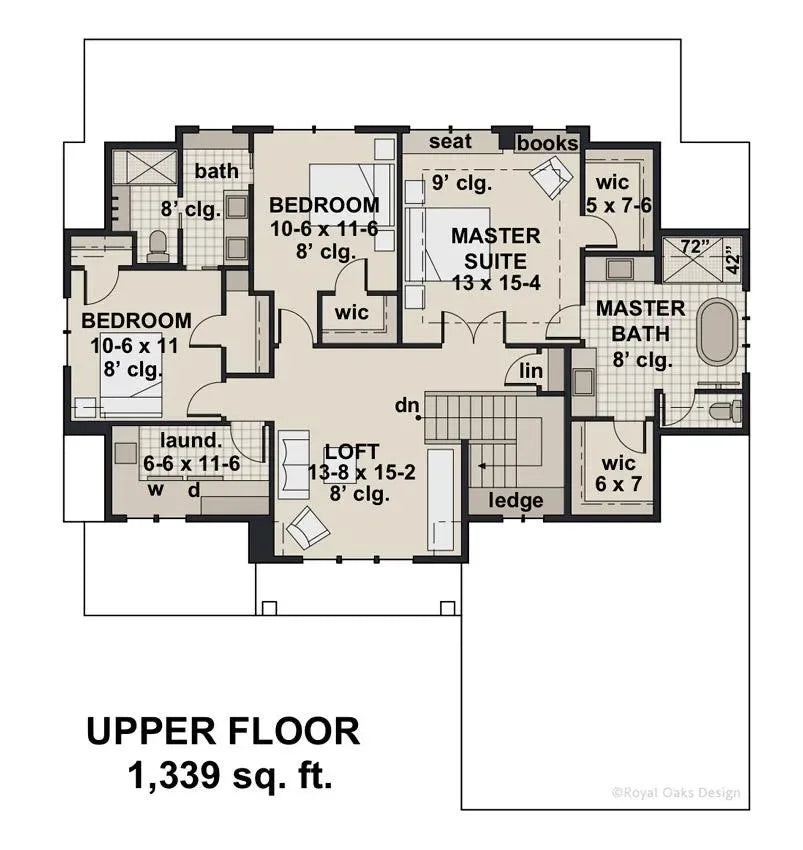

Relax and rejuvenate in your upper level master suite! The spacious master bedroom boasts a built-in window seat and book shelf. Two walk-in closets plus master bath with dual vanities and separate bathtub and shower complete the suite.
The upper level also has two additional bedrooms with generous closets and large windows. Between the bedrooms is a Jack and Jill bathroom with double sinks and a private toilet area. The laundry area is conveniently located outside the bedrooms, making laundry an easy chore! The huge loft would make for a perfect family or toy room.
There’s plenty of outdoor living space as well! There are large covered front and rear porches plus a 210 sq ft screen porch with roll-up screen and the 2-sided fireplace. All are wonderful places to spend a nice day with friends and family!
With so much space and so many quality features both indoors and out, this charming abode is perfect for any size family!
