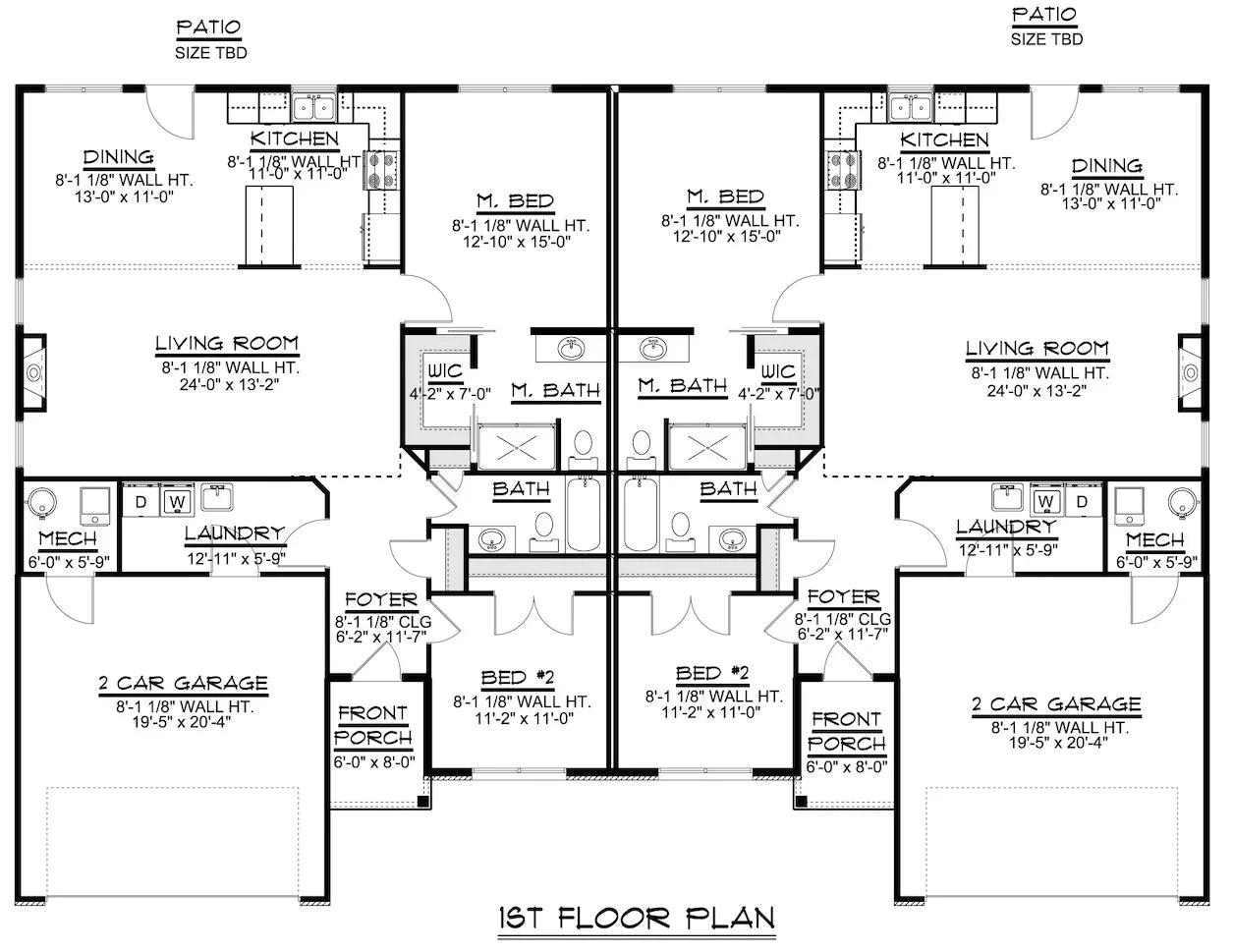

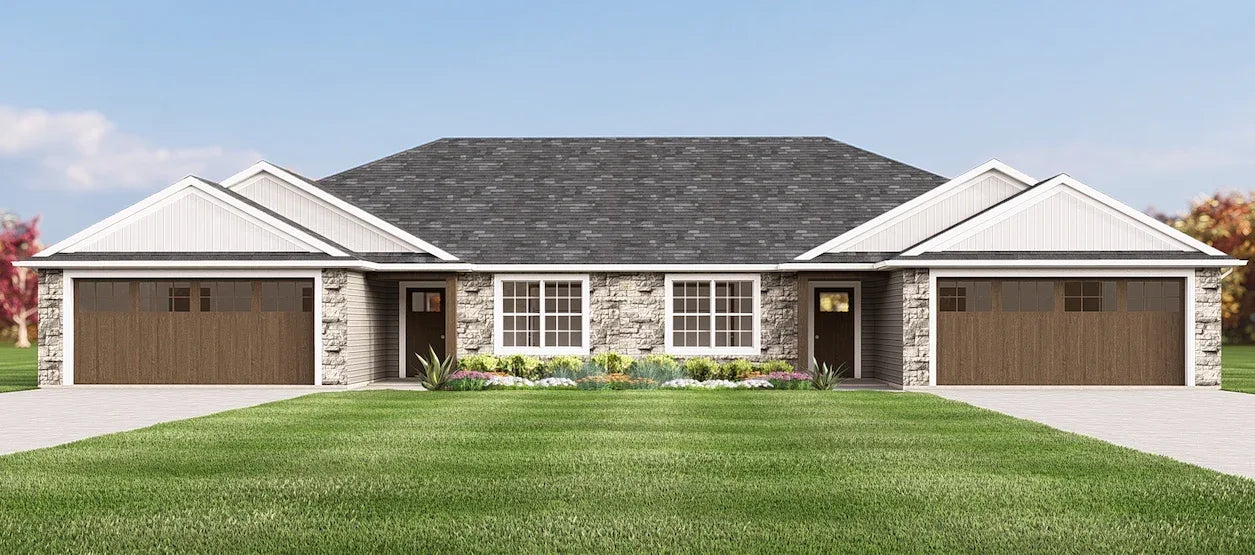

Alfredo is a traditional duplex house plan offering a total of 2,762 sq ft of heated living space, split into two identical units of 1,381 sq ft each. Designed for a 76-foot wide lot with a 52-foot depth, this one-story structure provides a symmetrical layout suitable for multi-generational living or rental income. The exterior features a 6:12 roof pitch and reaches a maximum building height of 19 ft 7 in, maintaining a balanced profile across the 76-foot frontage.
Each unit within the duplex includes two bedrooms and two bathrooms, organized in a cluster bedroom configuration to maximize floor space efficiency. The primary suite is located on the main level, providing direct access to the central living areas. A 50 sq ft porch per unit serves as a transition point to the outdoors, while the open interior layout benefits from 8-foot ceiling heights that provide a consistent sense of volume across the living zones.
The structural design utilizes 2x6 exterior wall framing and a truss roof system, resting on a durable slab foundation. Each unit is paired with a 431 sq ft front-load garage, totaling 826 sq ft of garage space for the entire structure. This garage placement ensures easy driveway access while preserving the rear yard dimensions for private use.
Functional utility is integrated through a first-floor laundry area located within each unit, simplifying daily tasks. The combination of the 2,762 sq ft footprint and the deliberate separation of private sleeping quarters from the shared living space results in a practical duplex design that prioritizes both structural integrity and interior organization.
Key Features: duplex configuration, 2,762 total sq ft, 4 bedrooms, 4 bathrooms, 2-car front-load garage per unit, slab foundation, 2x6 wall framing, truss roof, 6:12 roof pitch, cluster bedroom layout, first-floor master suite, laundry on main level.
