Wilbury Adu 1 is a carriage-style home design providing 672 sq ft of heated living space situated above a 672 sq ft two-car garage. With a footprint width of 33 ft 6 in and a depth of 28 ft, this structure is configured to maximize secondary living capacity on smaller lots. The design serves as a self-contained unit, often utilized for accessory dwelling units, guest accommodations, or rental properties.

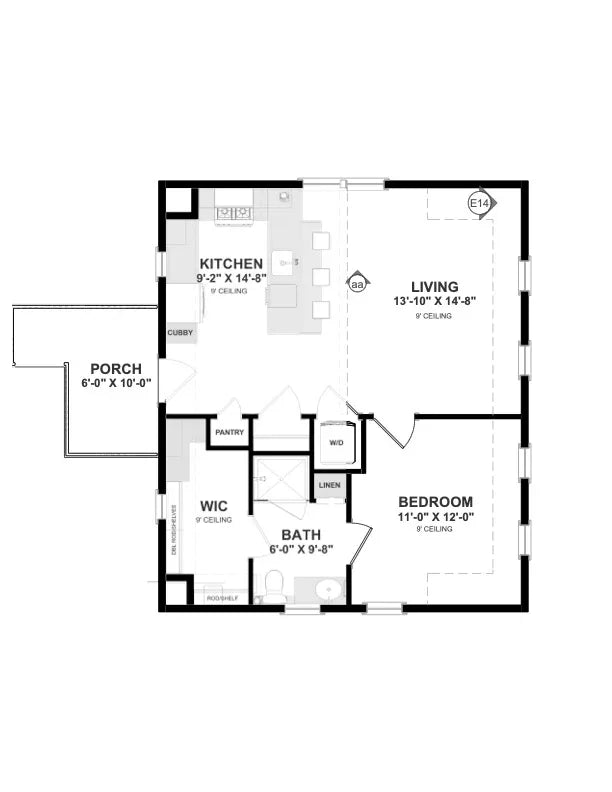

The second-floor living area utilizes an open-concept layout that integrates the kitchen, dining, and keeping room zones to maintain clear sightlines. A central kitchen island serves as a primary work surface and eating bar, effectively delineating the kitchen from the adjacent living area. The floor plan includes a private bedroom equipped with a walk-in closet and direct access to a full bathroom, alongside a dedicated second-floor laundry space for operational efficiency.

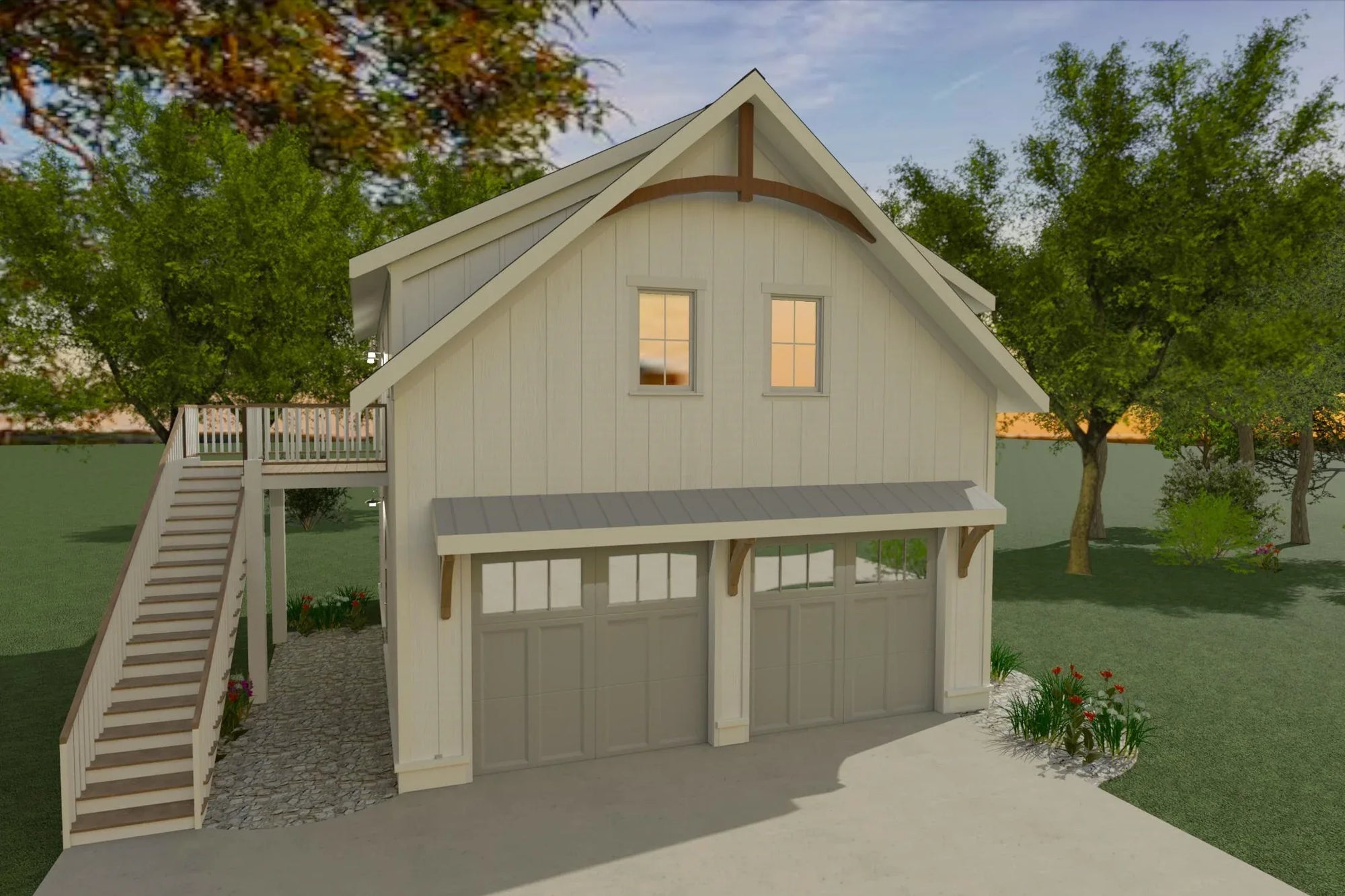

Vertical volume is prioritized throughout the interior, with a 10 ft ceiling height on the first floor and 9 ft ceilings on the second floor. These dimensions contribute to a consistent sense of scale across both levels. The exterior profile is defined by a 10:12 roof pitch and a maximum building height of 24 ft 9 in, establishing a traditional carriage house aesthetic that complements various architectural styles.

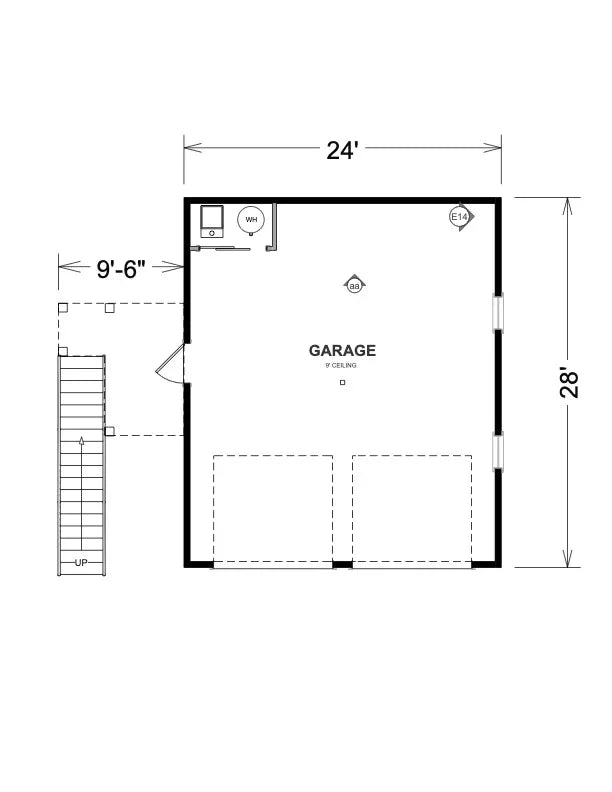

Structural integrity is supported by a 2-car garage on the ground level, which provides significant utility for storage or vehicle protection while doubling the total square footage of the building's footprint to 1,418 sq ft. The inclusion of a 74 sq ft deck offers an outdoor extension of the living space, supporting a compact yet comprehensive residential arrangement.
Key Features: 672 sq ft living area, 1 bedroom, 1 full bathroom, 2-car garage, open-concept living, kitchen island, walk-in closet, second-floor laundry, 10:12 roof pitch, 10 ft main ceiling height, accessory dwelling unit configuration.
Review floor plans, CAD packages, and modification options for this carriage house design to begin your project.
