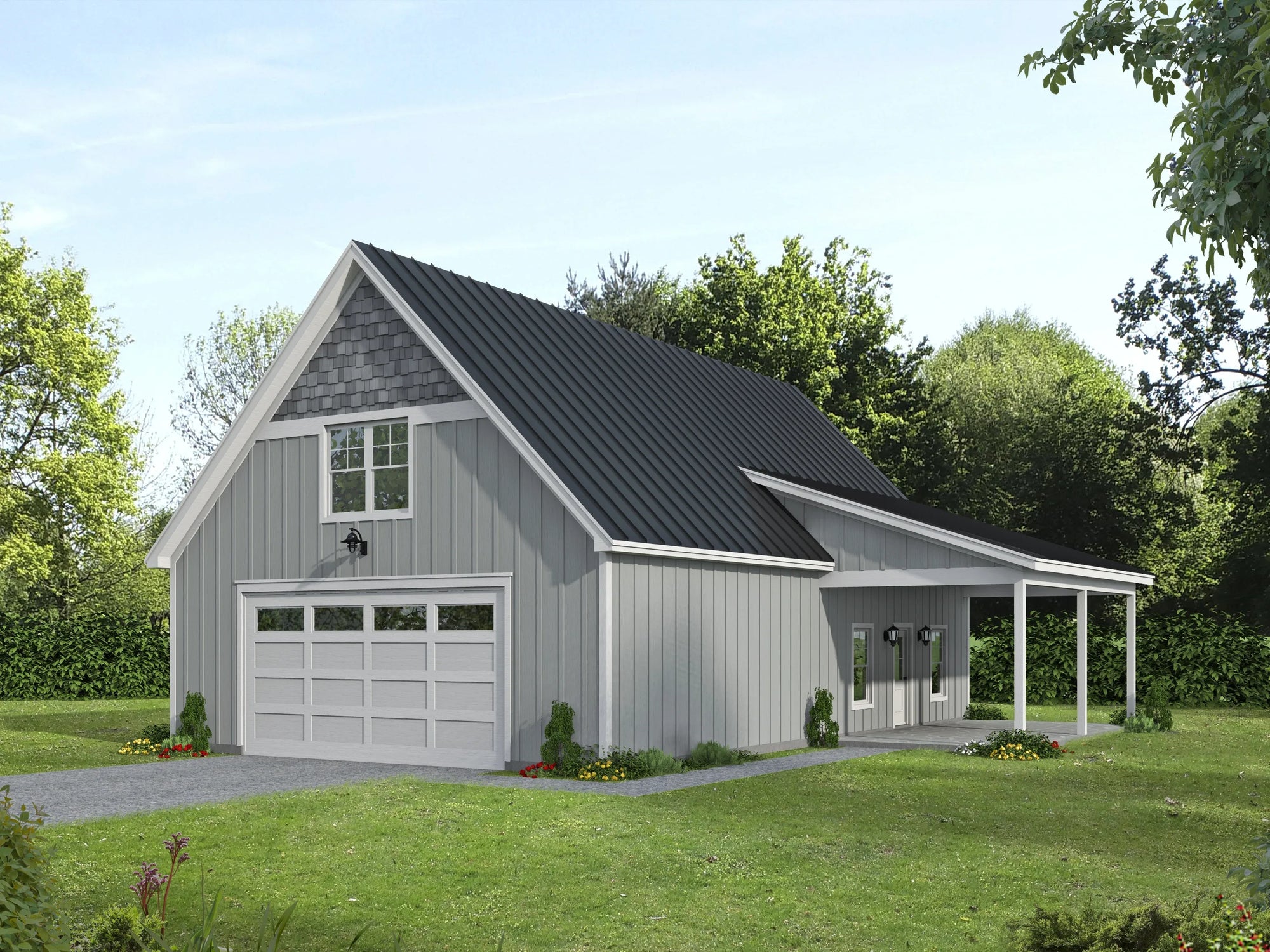

Cold Springs Garage provides a high-utility layout spanning 1,038 sq ft of heated living area, specifically engineered for sites requiring robust vehicle storage alongside secondary living quarters. The primary footprint measures 43 ft in width and 50 ft in depth, accommodating a substantial 4-car garage on the ground level that occupies 1,433 sq ft of space. The structural profile reaches a maximum building height of 26 ft 7 in, characterized by an 8:12 roof pitch that maintains a compact yet effective vertical volume.

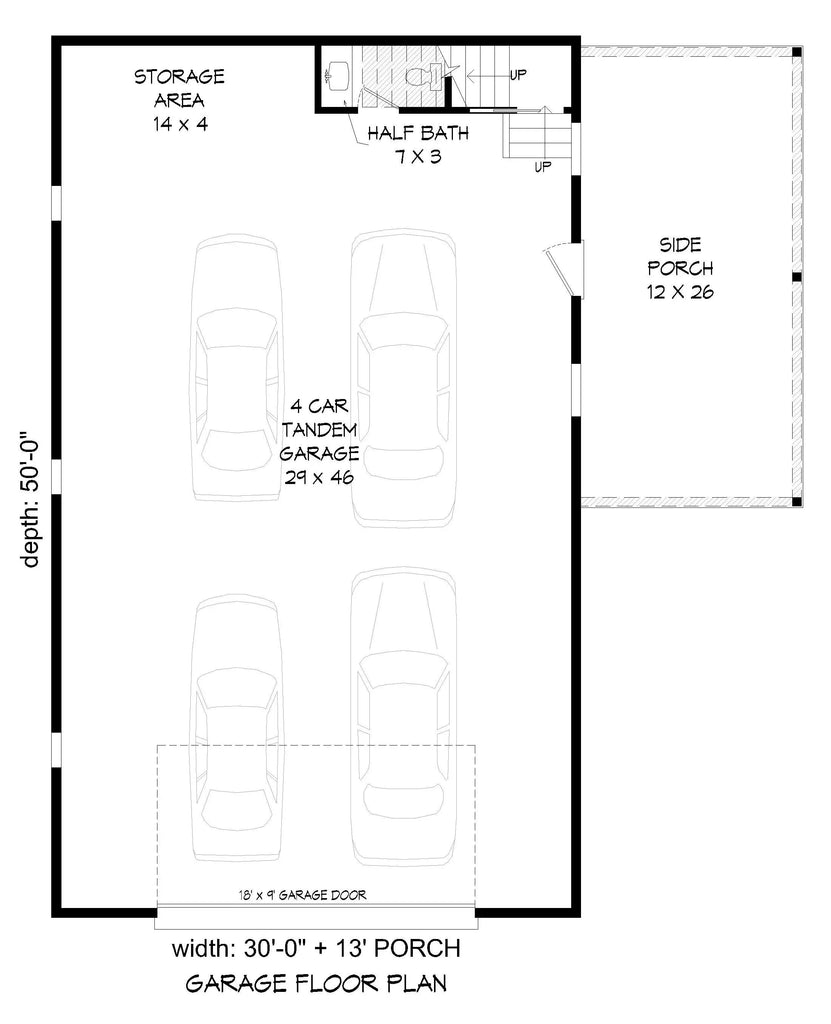

The ground floor serves as a dedicated support zone, featuring the 1,433 sq ft garage capacity and a single half bathroom for utility and convenience. This level is designed for maximum efficiency, providing enough room for vehicle maintenance, equipment storage, or a workshop environment. A 329 sq ft side porch provides exterior access and circulation, ensuring the transition between the garage level and the outdoors is managed without obstructing the main structure.

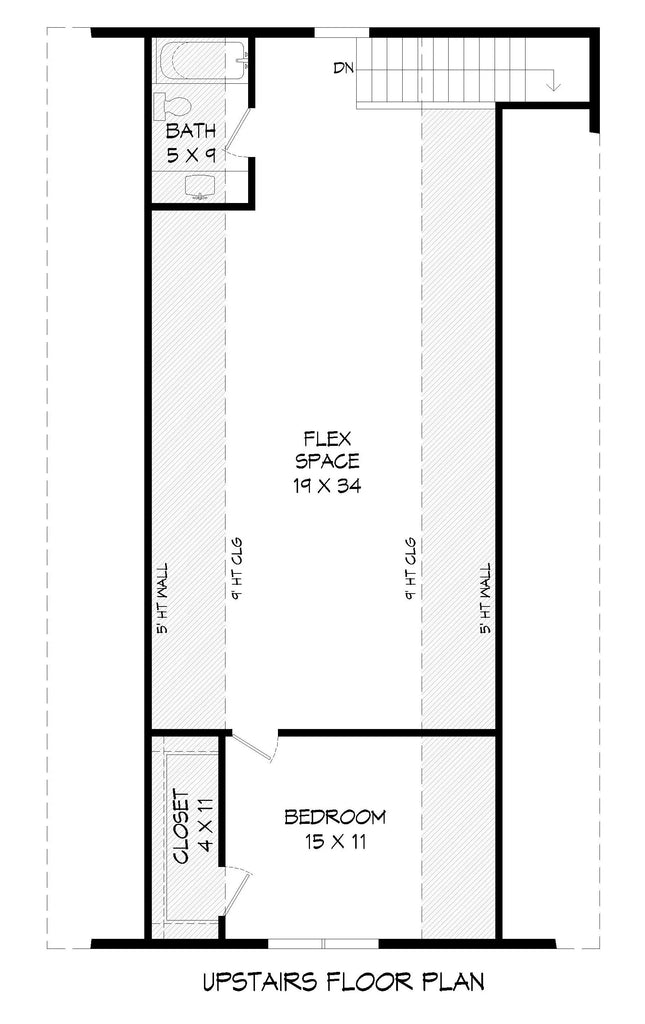

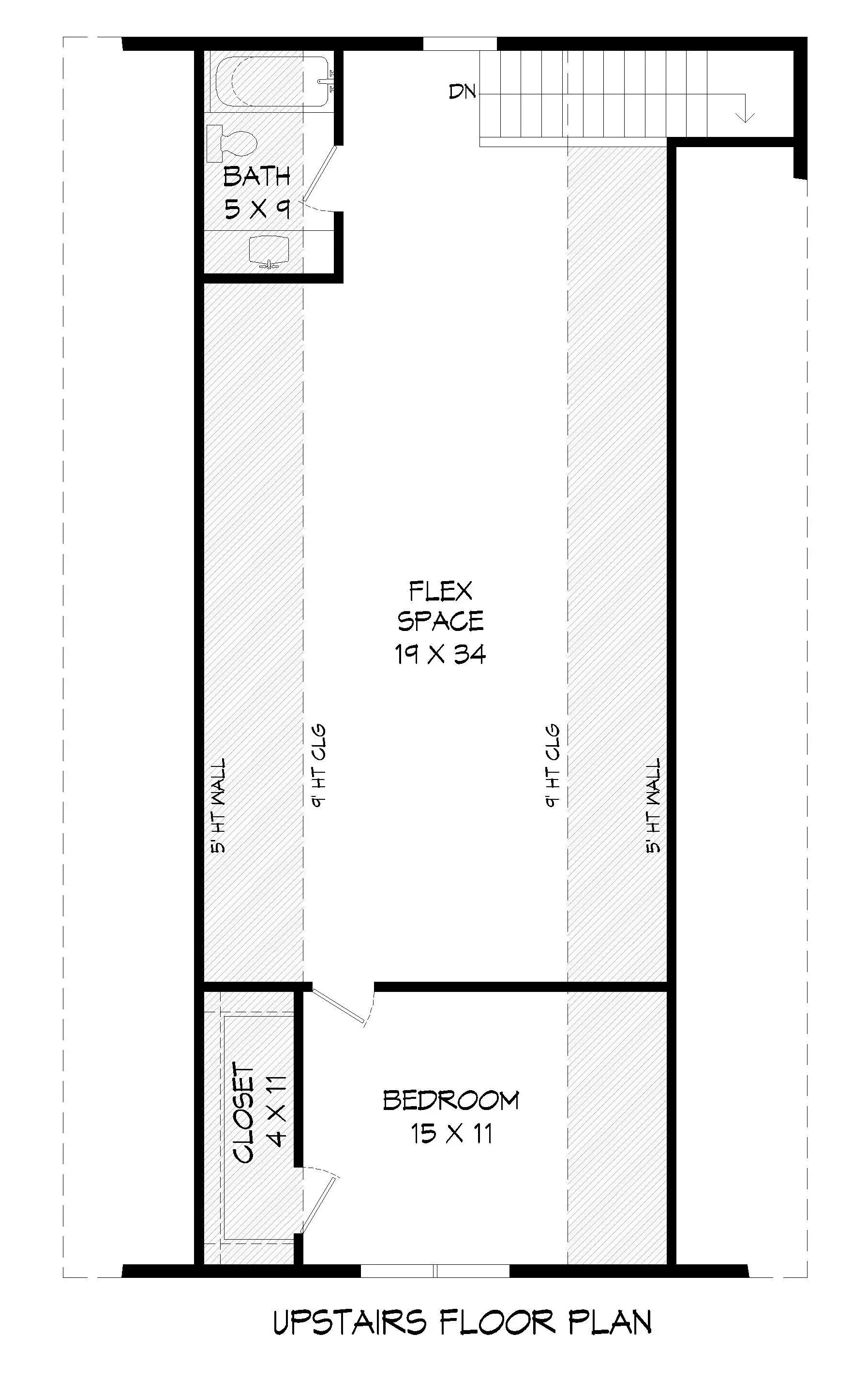

Occupying the upper level, the 971 sq ft residential unit prioritizes privacy and natural light. This floor includes a primary suite equipped with a full bathroom and a walk-in closet, alongside a flexible room that adapts to specific needs such as a home office, hobby studio, or media area. The 9-foot ceiling height on this level creates an open atmosphere, while the 10-foot ceilings on the first floor offer the necessary clearance for large vehicle storage or industrial-grade workshop equipment.
Construction technicalities include a specialized layout that separates the heavy-duty garage area from the quiet residential zone above. The 12:12 roof pitch enhances the exterior aesthetic while ensuring efficient water drainage. With its ADU-style configuration, this plan offers a strategic solution for property owners looking to integrate extensive garage space with a fully self-contained apartment or guest suite within a single, efficient building footprint.
Key Features: 1 bedroom, 1 full bathroom, 1 half bathroom, 4-car garage, 1,038 sq ft heated living area, 1,433 sq ft garage space, walk-in closet, 329 sq ft side porch, 10-foot first-floor ceilings, 9-foot second-floor ceilings, ADU design.
Review plan layouts, CAD packages, and customization options for this home.
