H6502-A

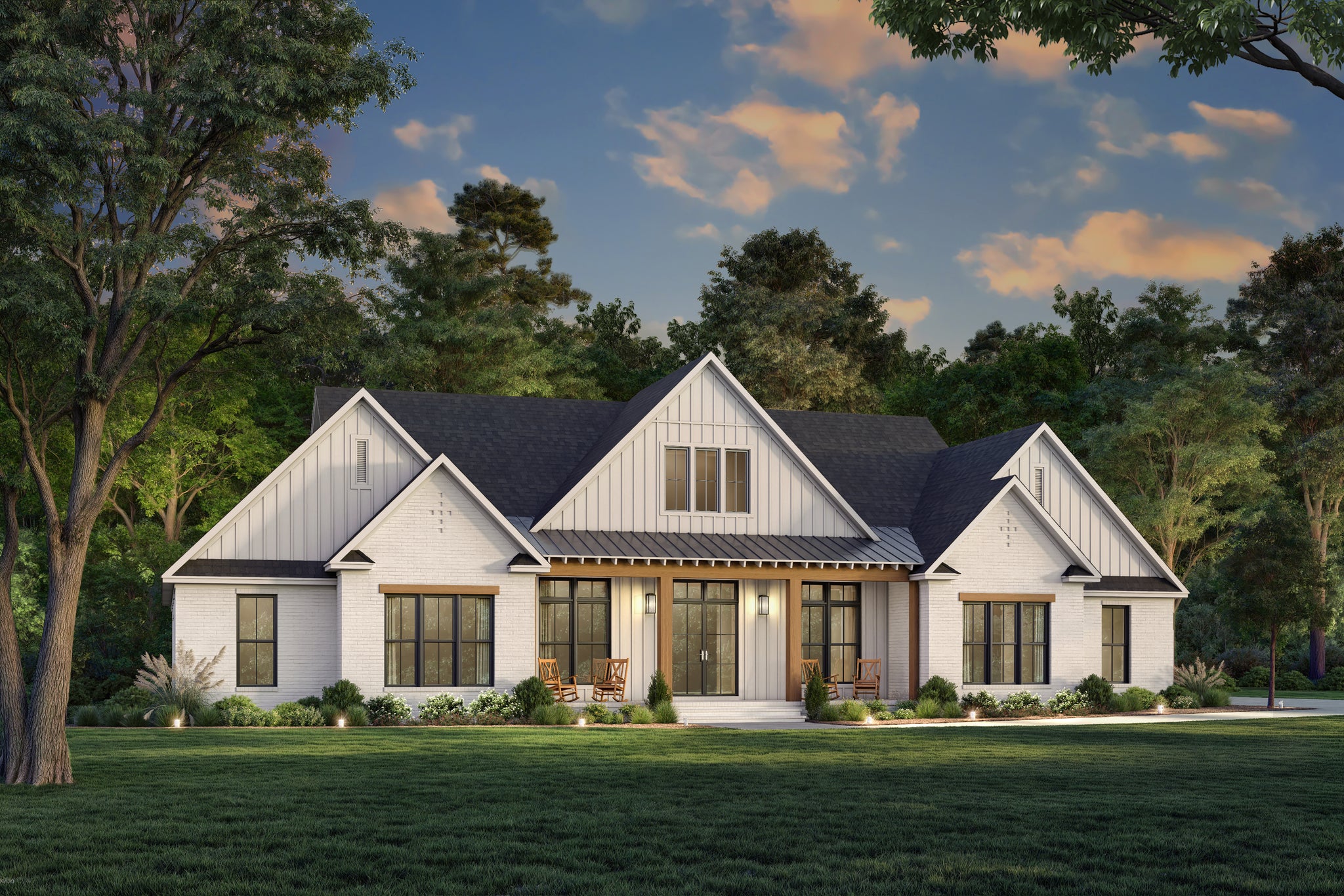

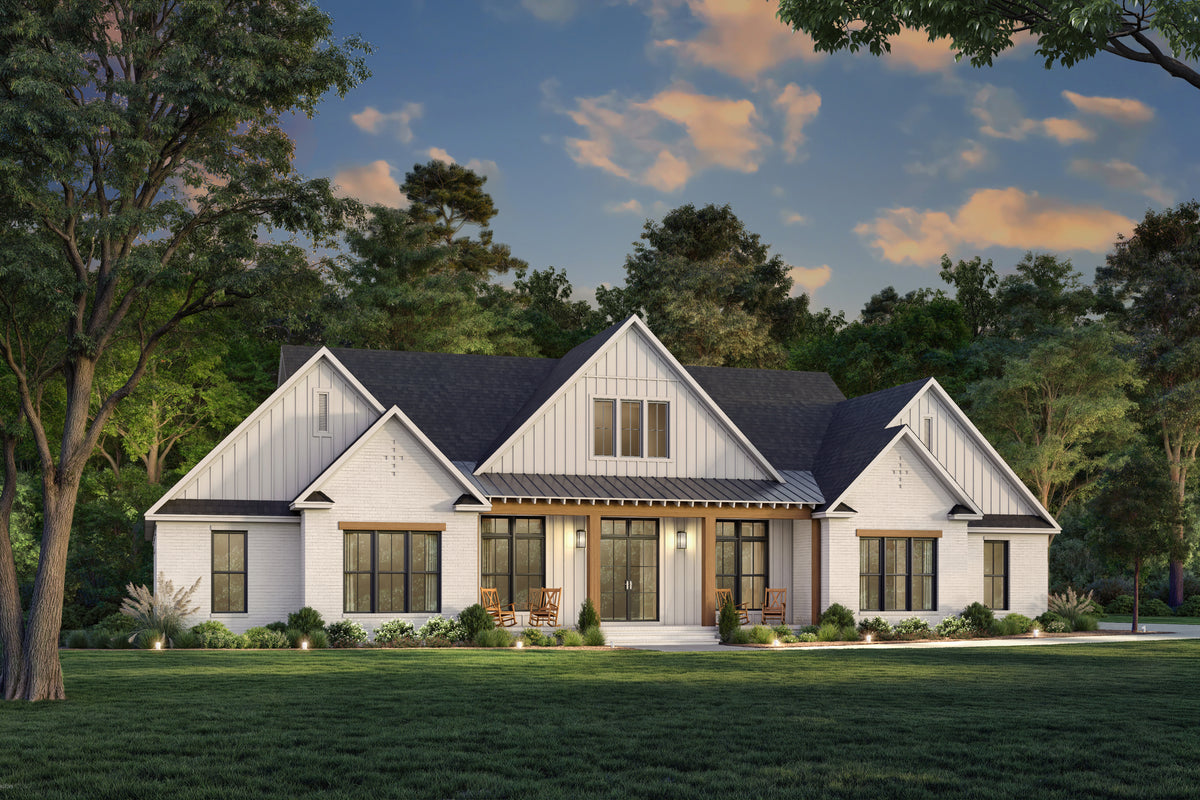

3354 S Richland provides 3,354 square feet of heated living area configured in a expansive one-story footprint. Measuring 84 feet 10 inches in width and 75 feet 8 inches in depth, this residence requires a substantial lot to accommodate its linear layout and 822 square feet of total porch space. The exterior features a 9:12 roof pitch and a maximum building height of 29 feet, establishing a consistent vertical profile across the structure.

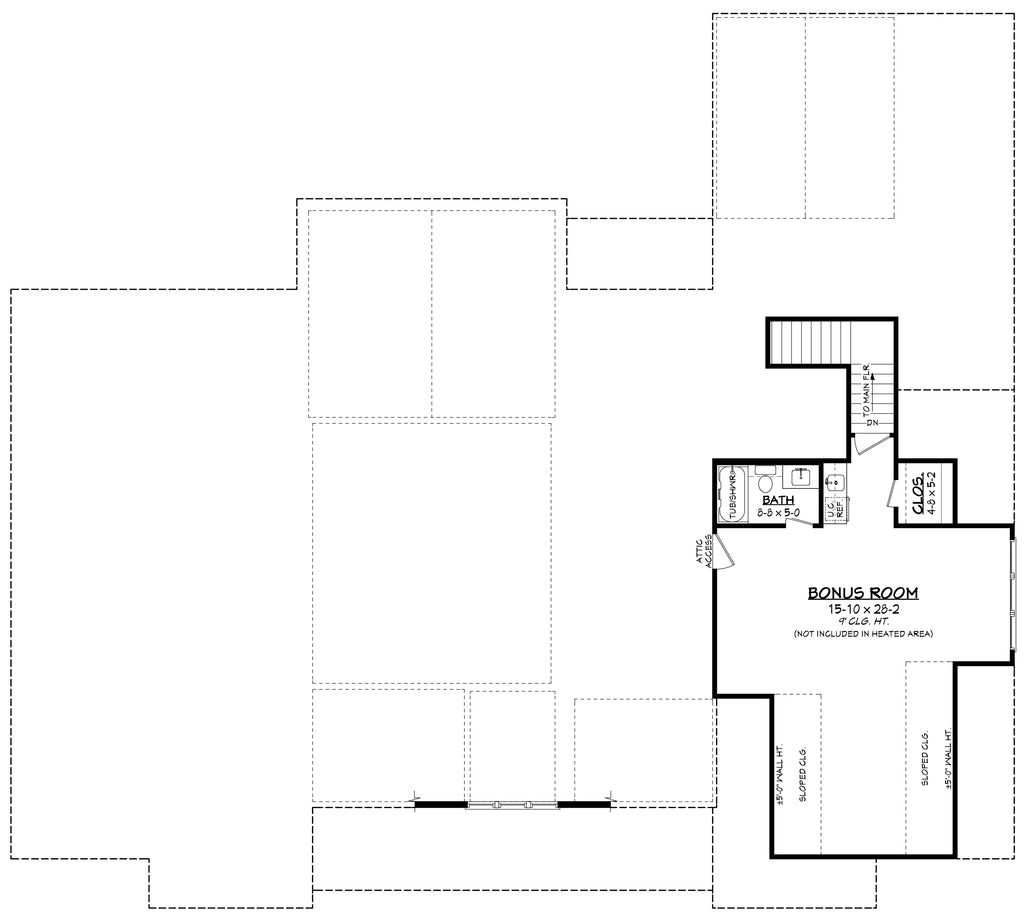

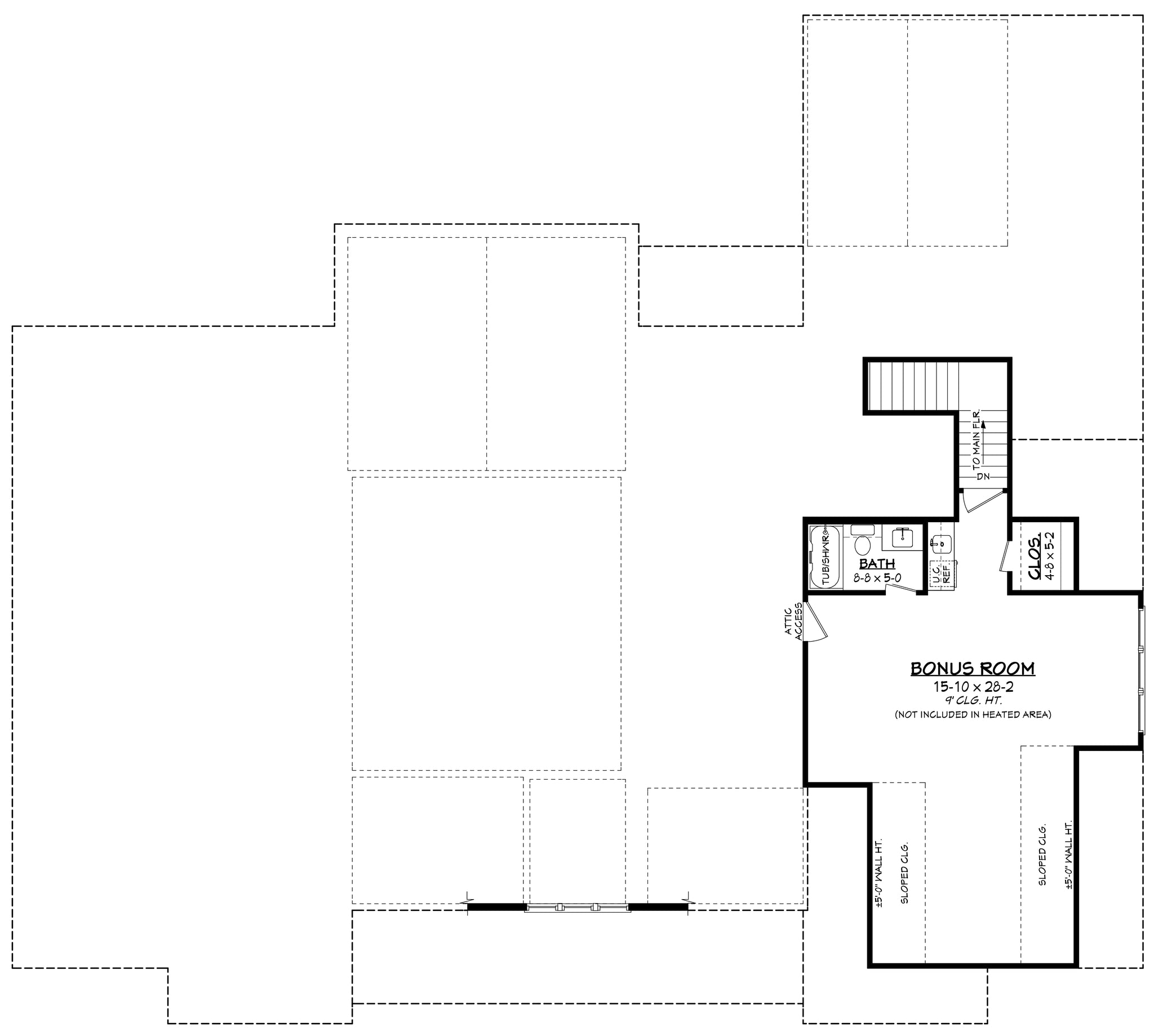

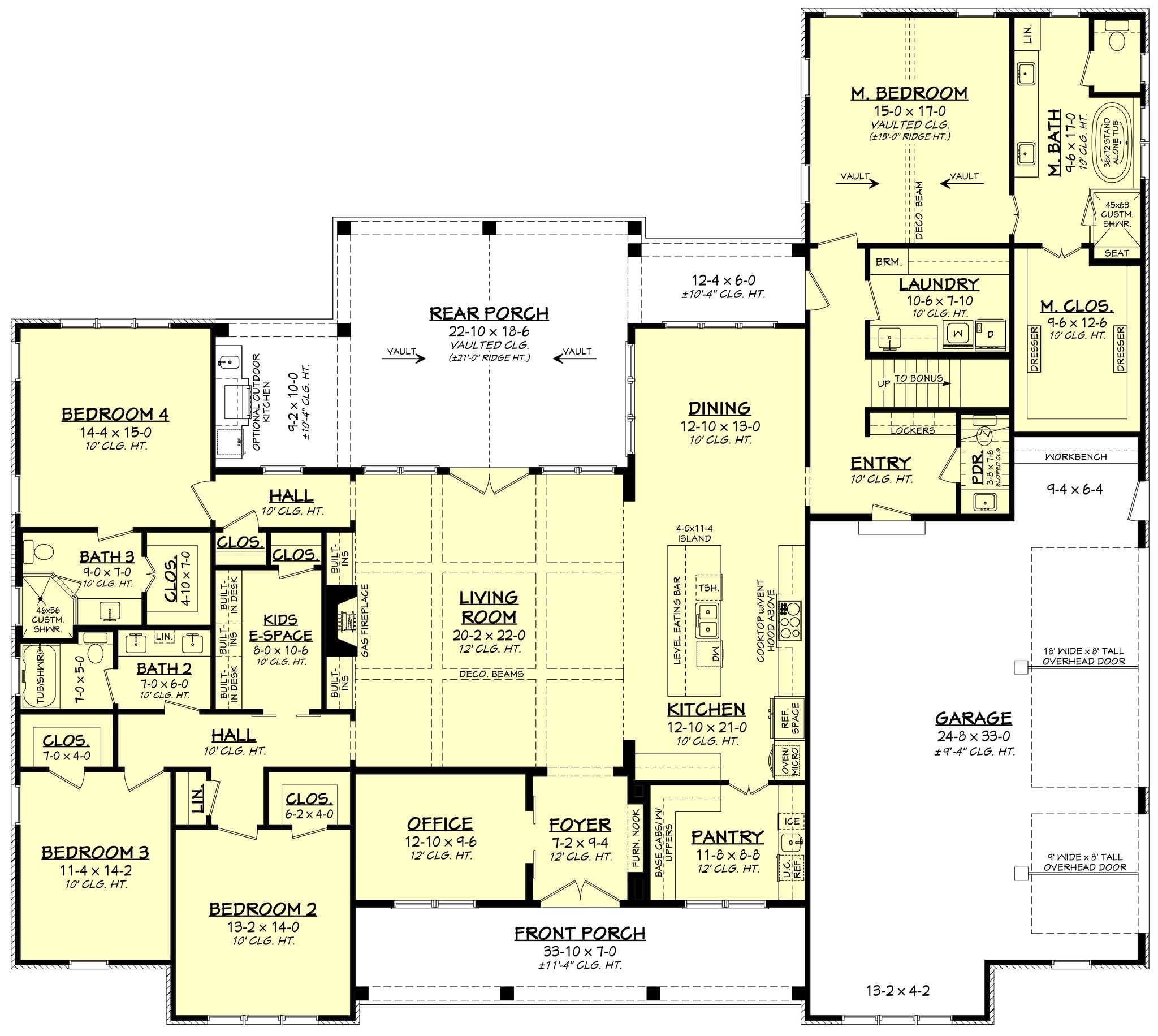

The interior architecture centers on an open-concept core where the kitchen, dining, and living zones align, anchored by a central fireplace. A dedicated 701 square foot bonus room provides flexible space for a media center or recreational use. The floor plan incorporates a split-bedroom arrangement to isolate the primary suite from the three additional bedrooms, ensuring acoustic separation and privacy for residents.
Functionality is integrated into the utility zones, which include a dedicated home office, a mudroom, and a separate laundry area. The kitchen is equipped with a large island and a walk-in pantry, supporting high-volume meal preparation and storage. Ten-foot ceilings throughout the main level enhance the interior volume, allowing for increased natural light penetration across the open living areas.

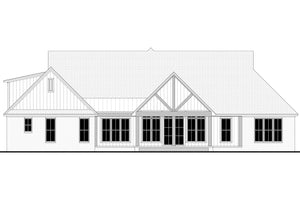

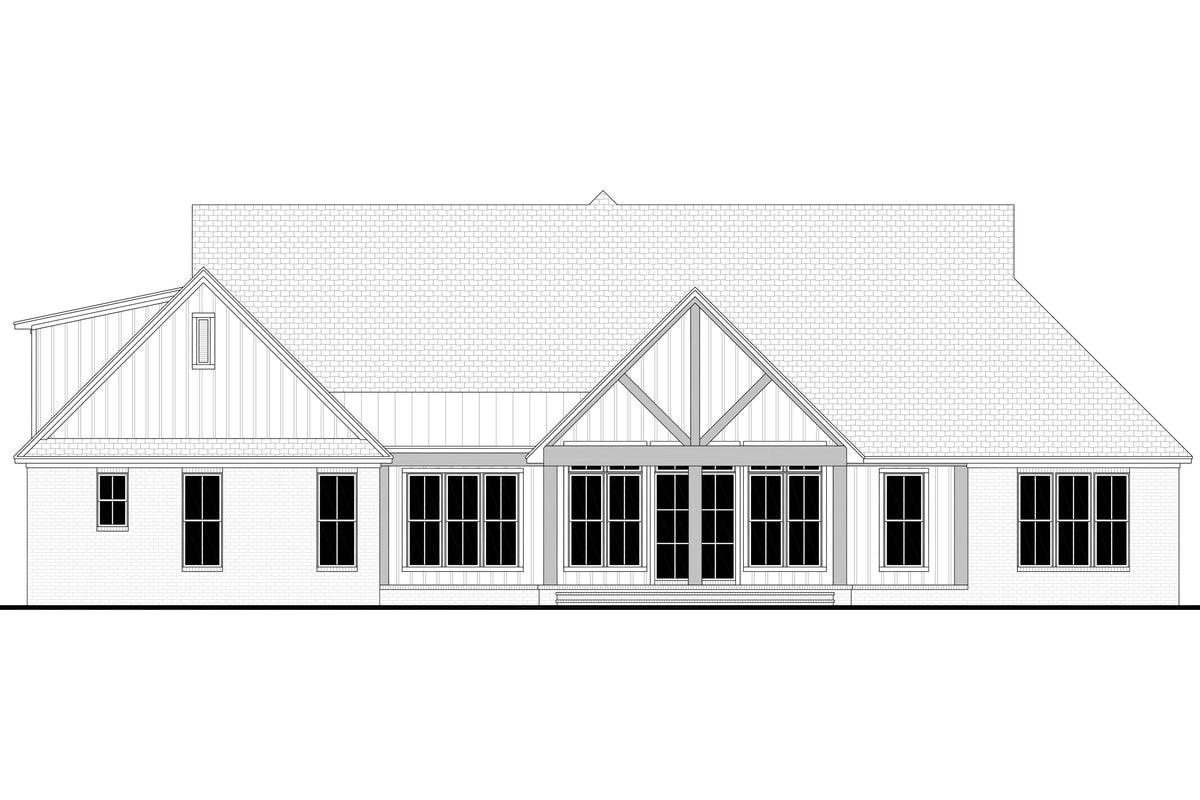

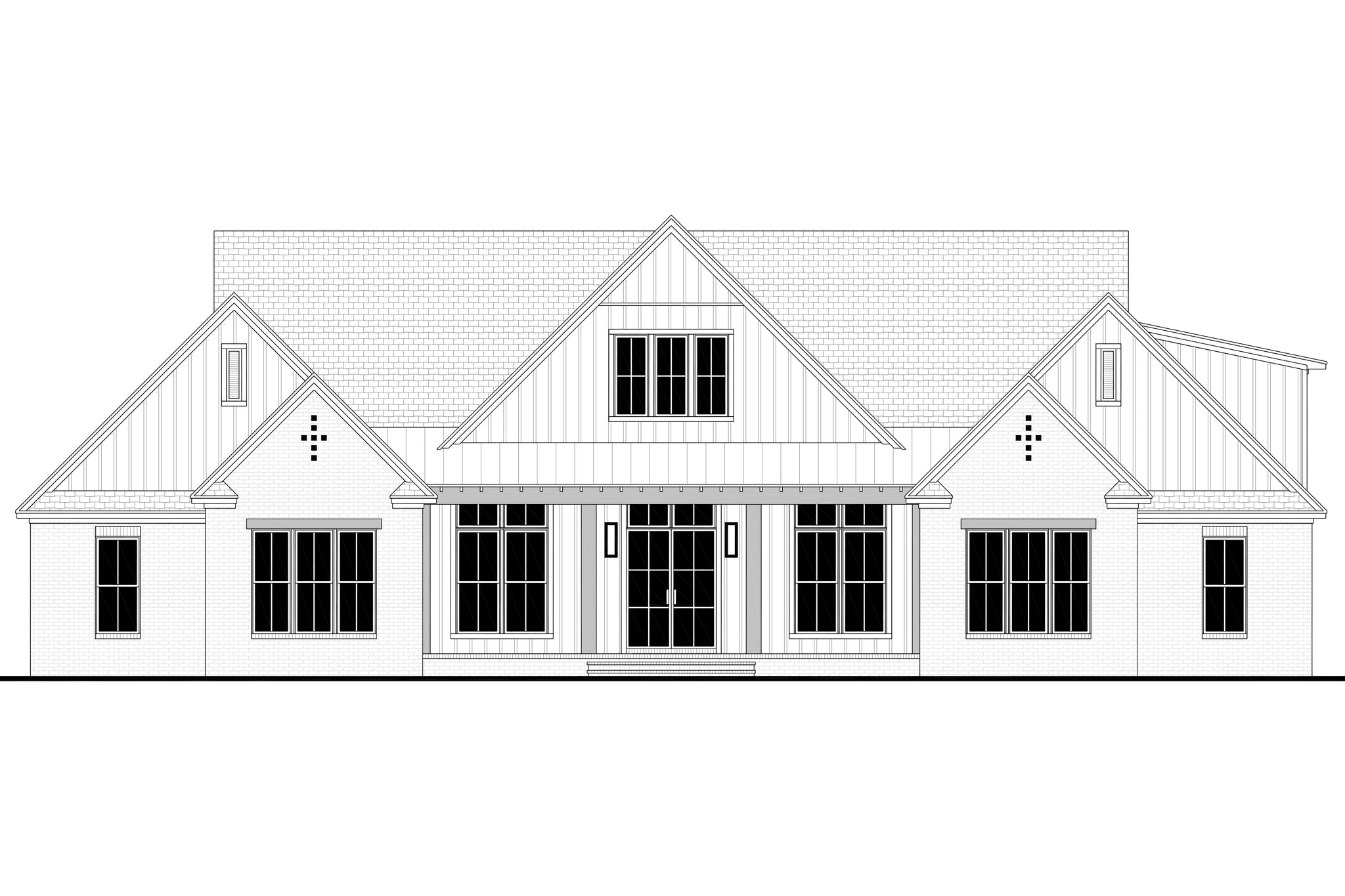

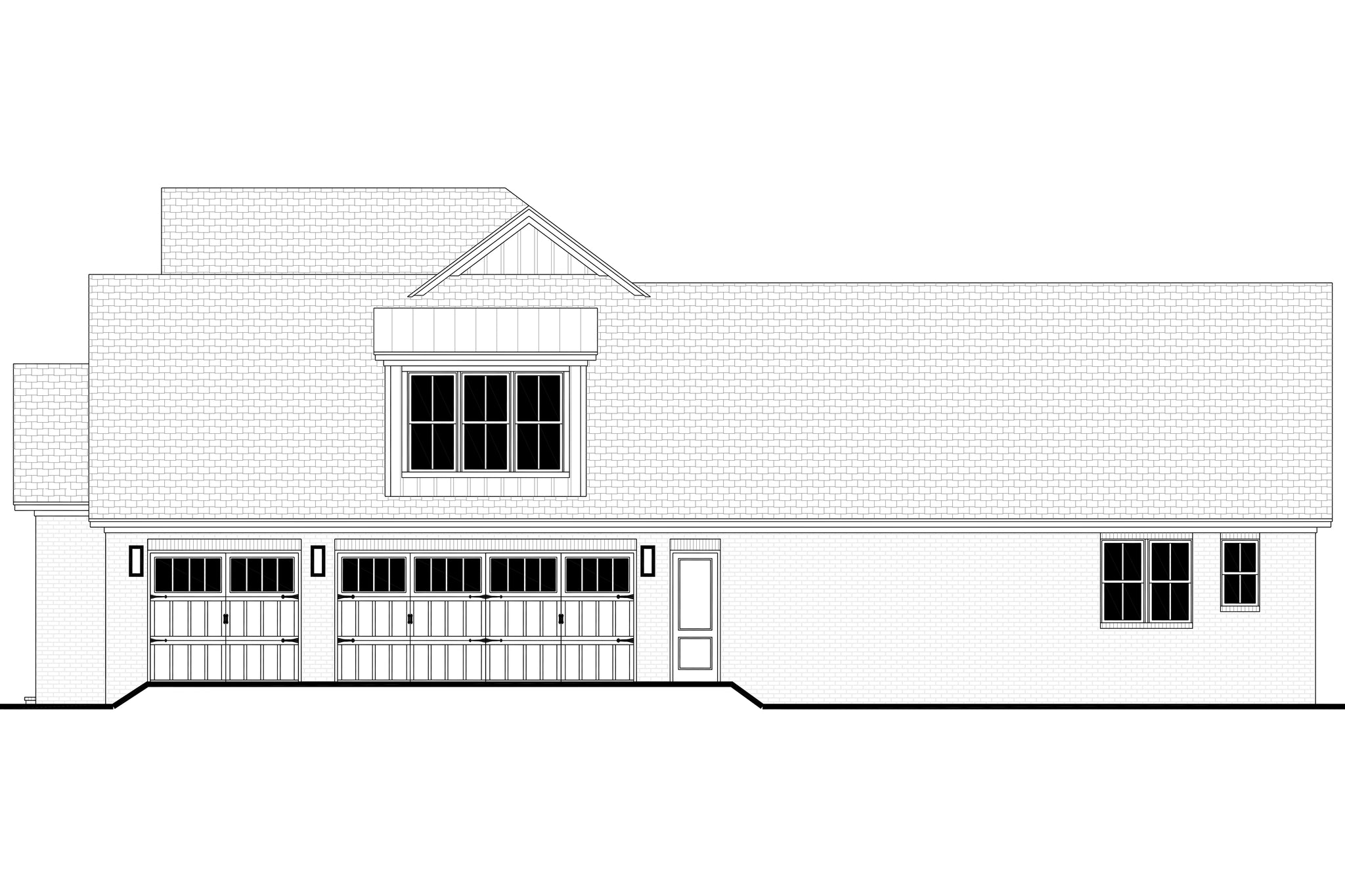

Structural integrity is maintained through a slab foundation and a 960 square foot side-load 3-car garage. The garage placement minimizes street-side obstruction, allowing the front elevation to focus on the 237 square foot covered front porch. An additional 585 square foot rear porch extends the living space outdoors, facilitating transition between the interior social zones and the exterior grounds.
Key Features: 4 bedrooms, 3 full bathrooms, 1 half bathroom, 3,354 sq ft heated living area, 701 sq ft bonus room, side-load 3-car garage, split-bedroom layout, 10-foot ceilings, home office, walk-in pantry, 9:12 roof pitch, slab foundation.
Explore floor plans, available formats, and modification options for this design.





PDF (Single Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
CAD + PDF (Single Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
5 or 8 Prints (Single Build)
Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.
5 Prints + PDF (Single Build)
Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
PDF (Multi Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
CAD + PDF (Multi Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.
Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.
Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.
Basement - This foundation is entirely or partially below ground and offers storage or living areas.
Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.
