Spacious One-Story Home with Courtyard Garage and Open Layout provides 2,352 sq ft of heated living space, anchored by a 62 ft width and 73 ft 8 in depth footprint. This single-level residence utilizes an 8:12 roof pitch to achieve a maximum building height of 23 ft 6 in, establishing a classic profile while maintaining efficient interior volume under 8 ft ceilings.

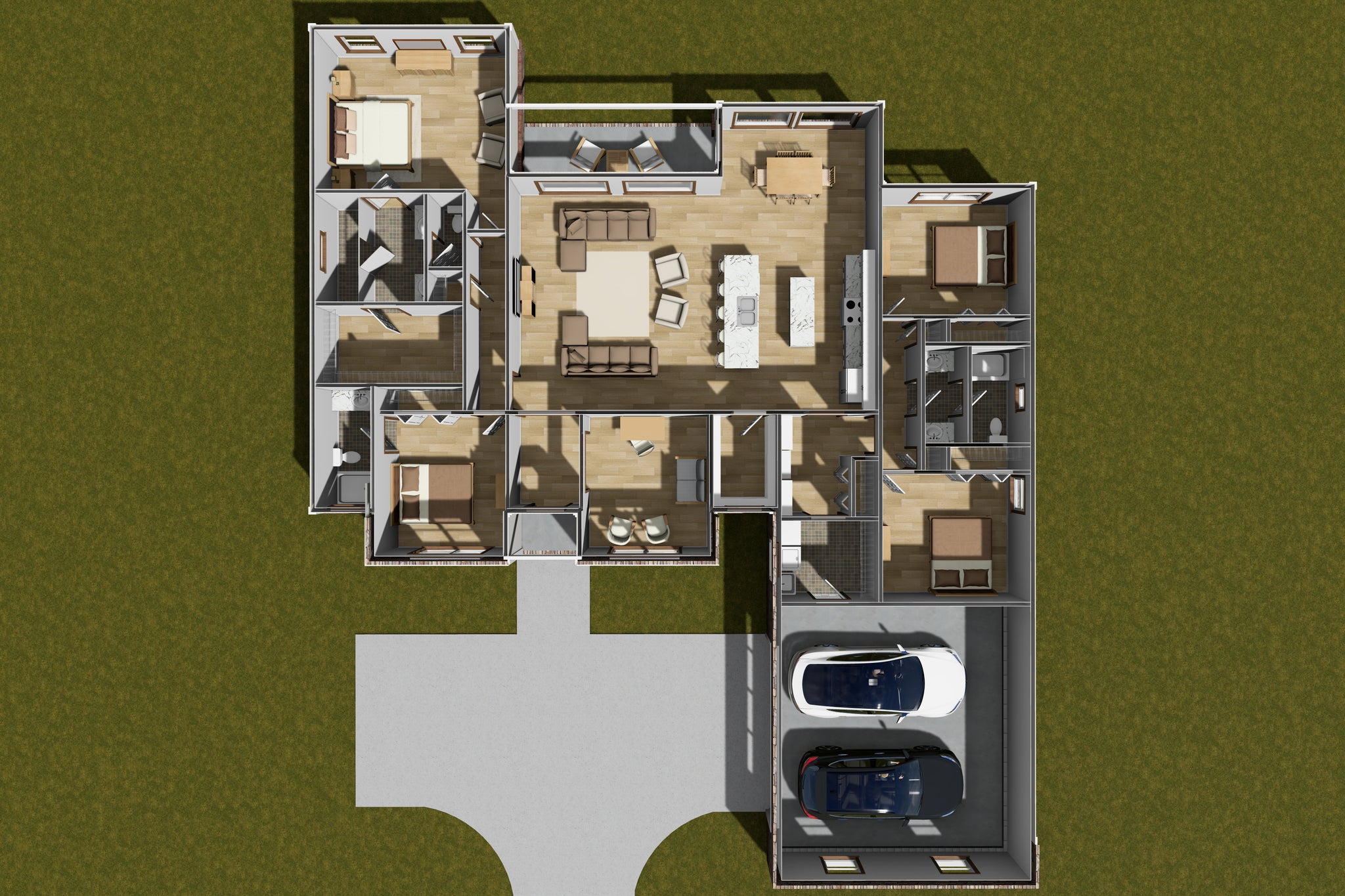

The interior architecture focuses on a core open-concept layout, where the kitchen island serves as a central hub adjacent to a large keeping room. A dedicated mudroom and separate laundry area occupy functional zones near the entry, while a formal dining room provides additional space for gatherings. The walk-in pantry supports the kitchen's utility, ensuring clear sightlines across the primary living area.
Separation of living quarters defines the floor plan, with a private master suite situated away from three secondary bedrooms to maximize acoustic privacy. This 4-bedroom, 3-bathroom design includes a dedicated home office, providing a quiet space for remote work. The 2,352 sq ft floor plate integrates these zones into a cohesive, accessible layout that prioritizes direct access between the main living area and the outdoor spaces.
Outdoor transitions are facilitated by a 24 sq ft front porch and a 108 sq ft rear porch, totaling 132 sq ft of covered exterior area. The structural profile is supported by stick-framed roof construction, which contributes to the home's long-term durability. The 528 sq ft, 2-car courtyard-entry garage is positioned to keep the front elevation unobstructed, preserving the home's architectural lines while offering practical vehicle storage.
Key Features: 4 bedrooms, 3 bathrooms, first-floor master suite, open-concept kitchen island, walk-in pantry, home office, mudroom, courtyard-entry 2-car garage, covered front and rear porches, 8:12 roof pitch.
Explore floor plans, available formats, and modification options for this design.
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
