Spanning a total of 3,162 sq ft, the Evans Duplex provides a symmetrical 1,581 sq ft per unit configuration, making it an efficient option for multi-family development or rental investment. This two-story modern farmhouse structure measures 59 ft in width and 37 ft 6 in in depth, requiring a lot size that accommodates its 29 ft maximum building height and footprint.

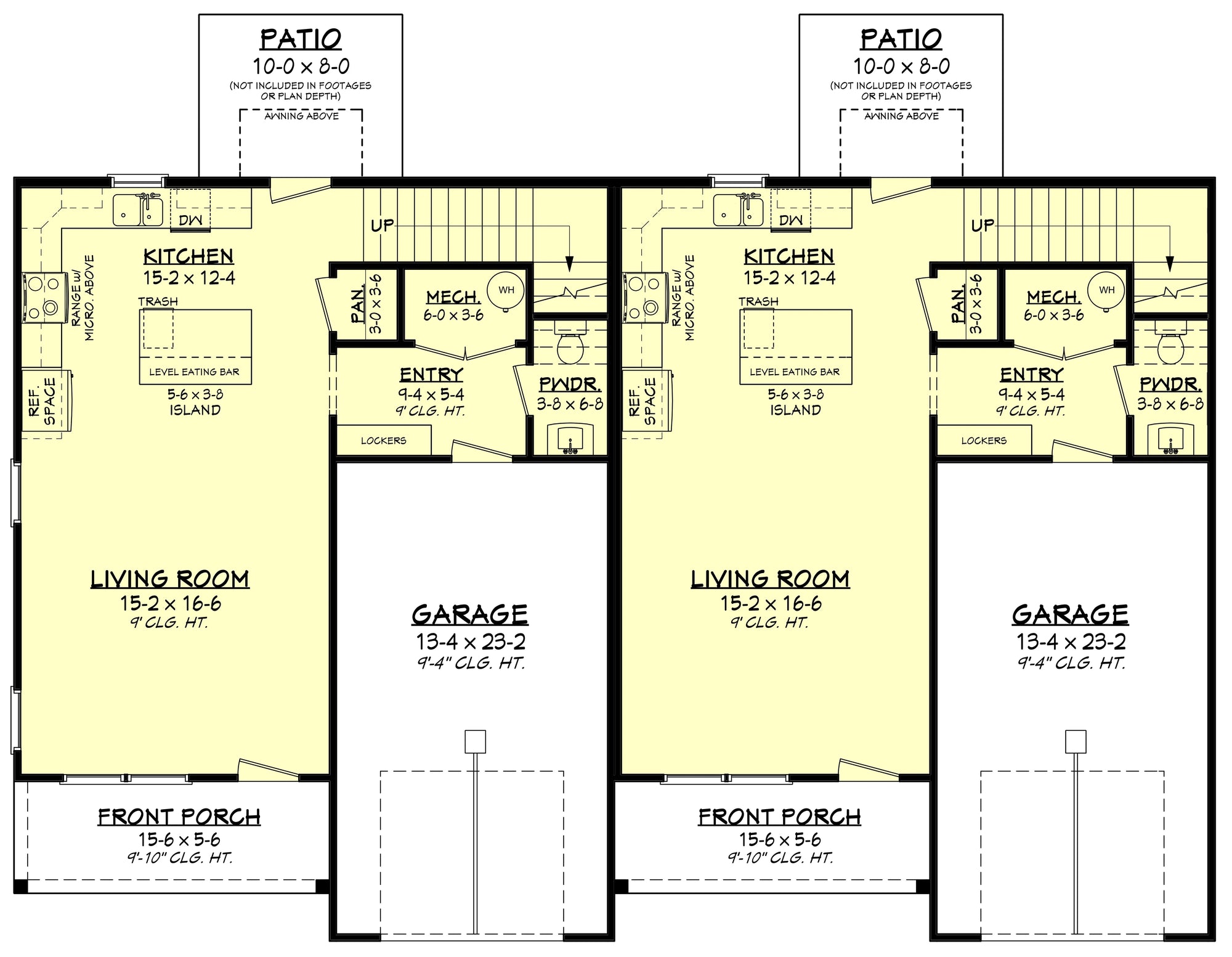

The main level of each unit is defined by an open-concept core totaling 1,322 sq ft, centered around a kitchen island and a walk-in pantry. A dedicated mudroom and laundry area provide transition zones from the exterior, while the layout integrates a half bathroom for guest use. The 9-foot ceiling heights across the first floor ensure consistent vertical volume throughout the primary living and dining areas.

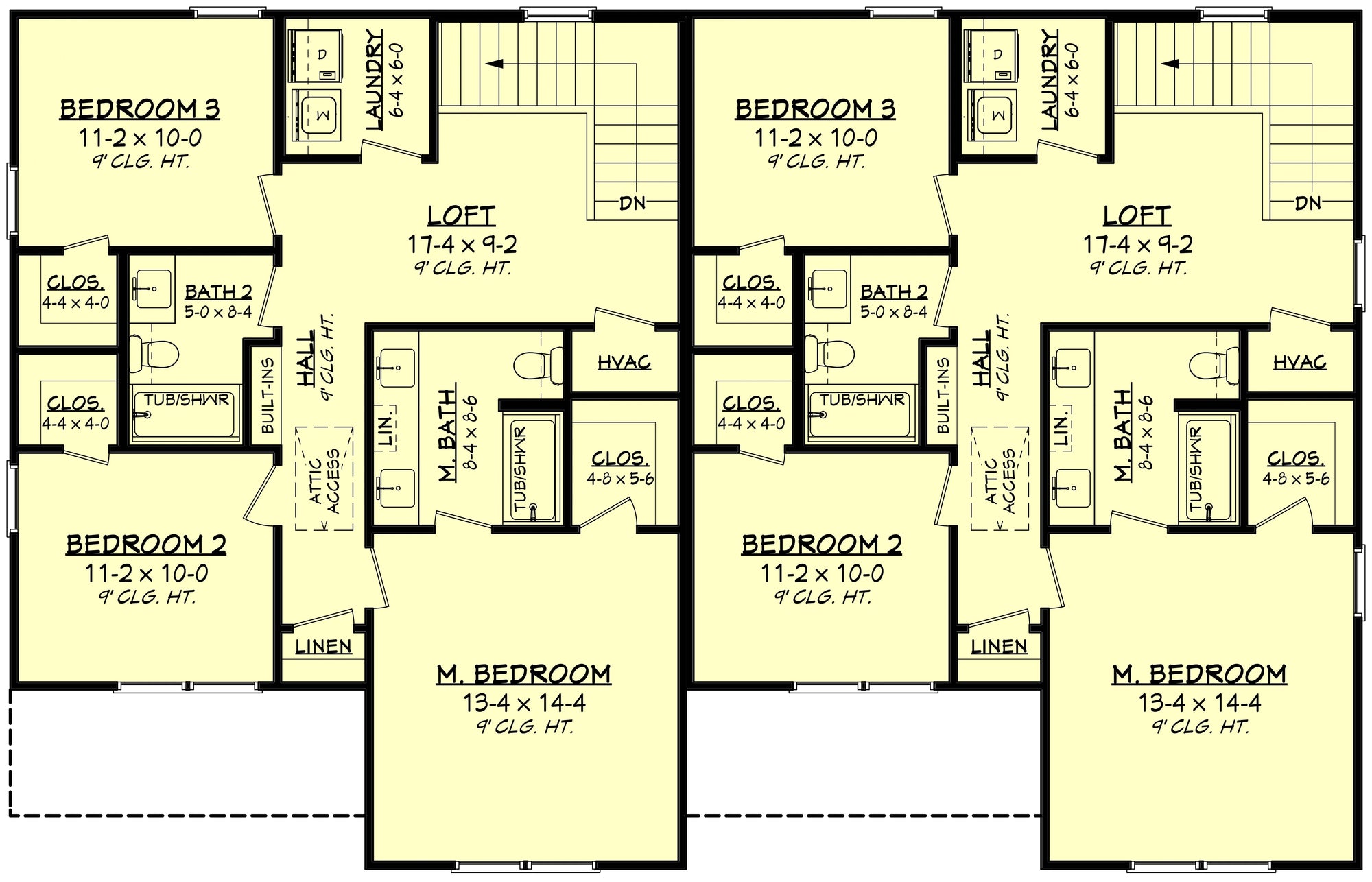

Occupying 1,840 sq ft of the total area, the second floor houses the private sleeping quarters for each unit. Each side includes a master suite with a walk-in closet and a double-vanity bathroom, accompanied by two additional bedrooms and a shared full bathroom. A central loft space on this level provides a flexible area for a home office or media zone, with 9-foot ceilings maintaining the structural consistency of the upper floor.

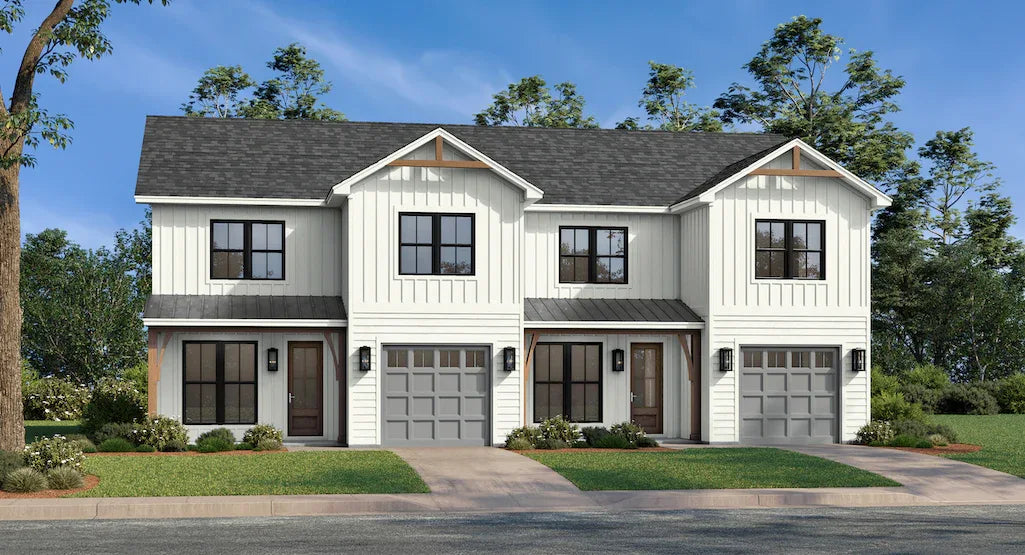

Constructed with an 8:12 roof pitch, the exterior profile reflects traditional farmhouse aesthetics while maintaining durable roof geometry. A 170 sq ft covered front porch provides entry access for both units. The building is supported by a 648 sq ft, 2-car garage configuration, with each unit featuring a single-car front-load garage that maintains the 59-foot width of the structure.
Key Features: two-story duplex, 3 bedrooms per unit, 2.5 bathrooms per unit, open-concept kitchen, walk-in pantry, second-floor master suite, loft space, front-load 1-car garage per unit, covered front porch, 9-foot ceiling heights.
Review floor plans, CAD packages, and modification options for the Evans Duplex to evaluate this design for your site.
